Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Seat Electrical / Seat Heater (Non-Air Ventilation) Components and Components Location

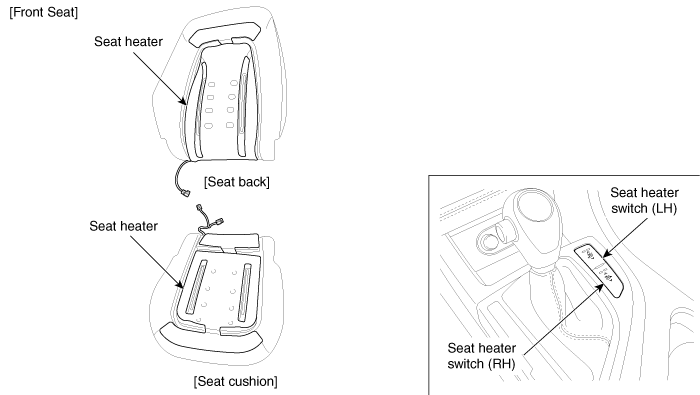

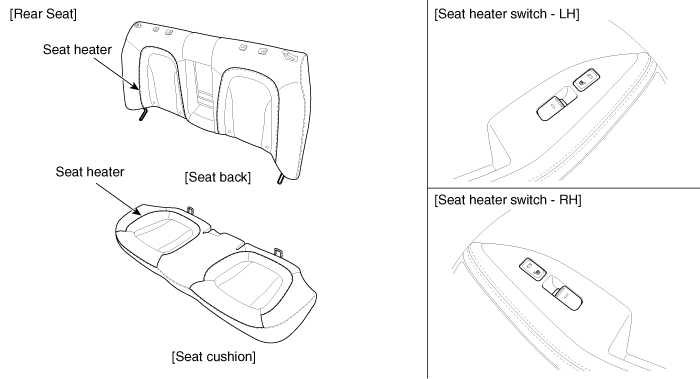

Component Location

Seat Heater Repair procedures

Inspection First Seat Heater 1. Check for continuity and measure the resistance between No.4 and No.6 terminals. [Cushion] No.DescriptionNo.Description1NTC4GND2-5GND3NTC6VCC [Back] Standard value (Fabric ...

Seat Heater (Non-Air Ventilation) Schematic Diagrams

Circuit Diagram ...
