Kia Optima Hybrid: Seat Electrical / Seat Heater (Non-Air Ventilation) Schematic Diagrams

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Seat Electrical / Seat Heater (Non-Air Ventilation) Schematic Diagrams

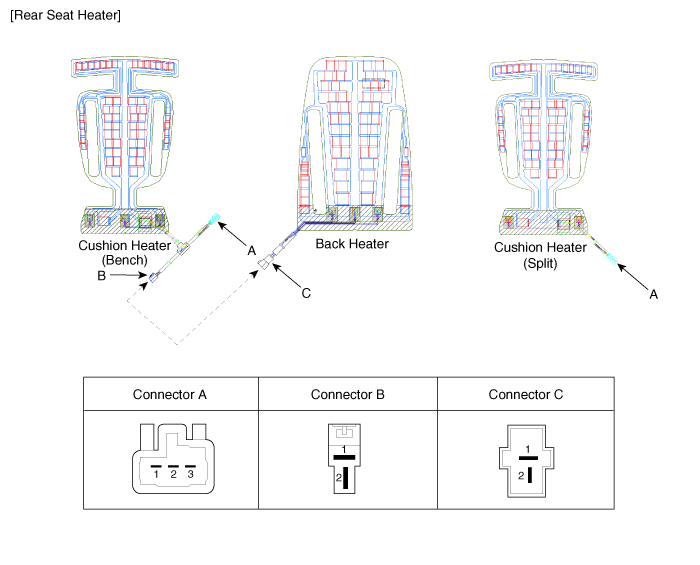

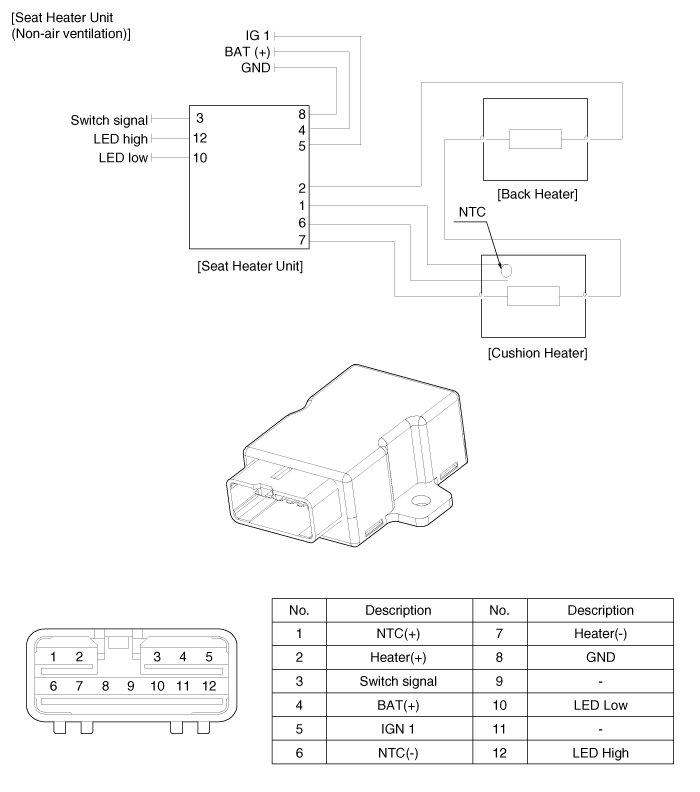

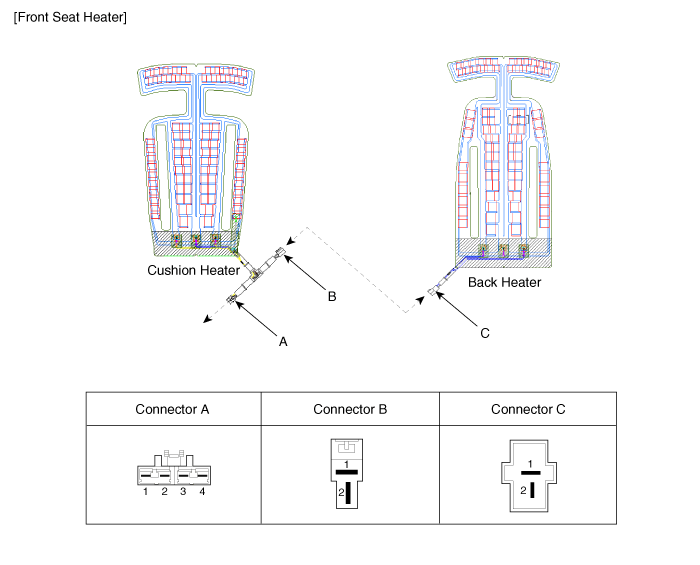

Circuit Diagram

Seat Heater (Non-Air Ventilation) Components and Components Location

Component Location ...

Seat Heater (Non-Air Ventilation) Repair procedures

Inspection First Seat Heater 1. Check for continuity and measure the resistance between No.4 and No.6 terminals. [Cushion] No.DescriptionNo.Description1Heater (-)3NTC (+)2NTC (-)4Heater (+) [Back] 2. Measure ...
