Kia Optima Hybrid: Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic Diagrams

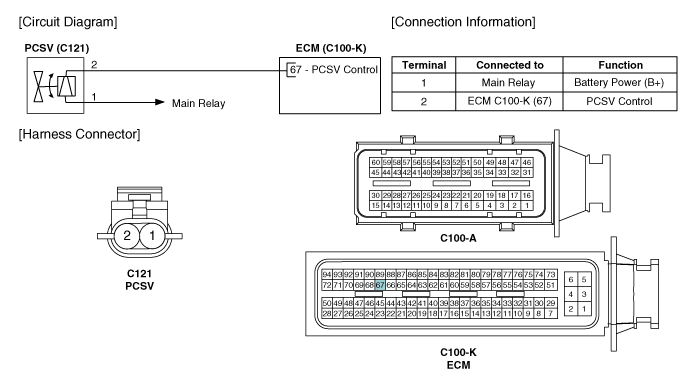

Circuit Diagram

Purge Control Solenoid Valve (PCSV) Specifications

Specification ItemSpecificationCoil Resistance (?)19.0 ~ 22.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV terminals 1 and 2. 4. Check that the resistance is within the specification. Specification: ...
