Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Rear Glass Defogger / Components and Components Location

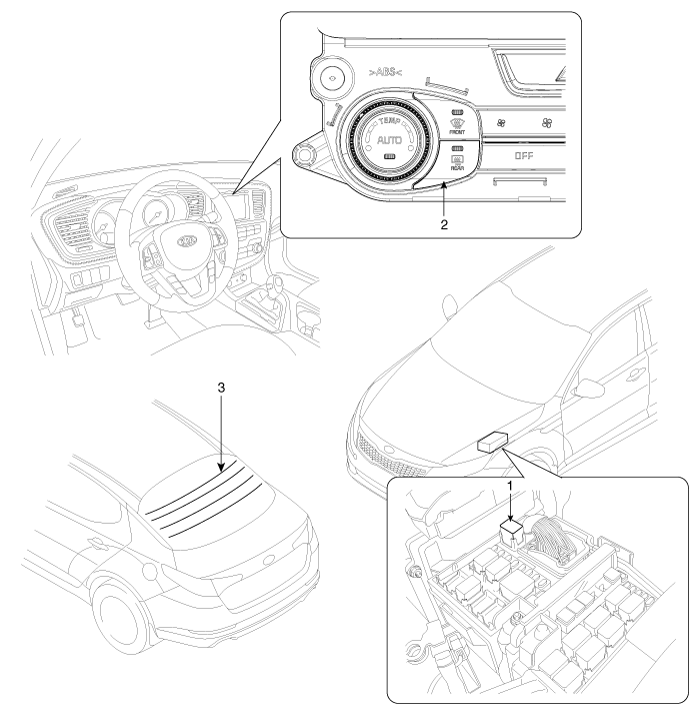

Component Location

1. Rear glass defogger relay (Engine room relay box)
2. Rear glass defogger switch (A/C controller)

3. Rear glass defogger

Rear Glass Defogger

...

Rear Glass Defogger Printed Heater Repair procedures

Inspection Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line. Apply finger pressure on the tin foil, moving the tin foil along the grid line to check ...
