Kia Optima Hybrid: Power Windows / Power Window Switch Schematic Diagrams

Circuit Diagram

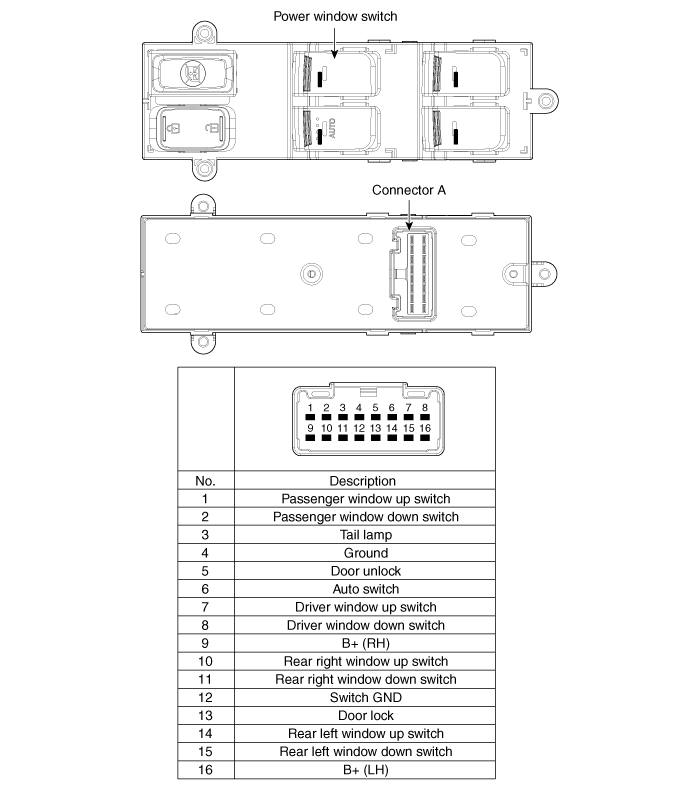

Driver Power Window Switch (1)

Driver Power Window Switch (2)

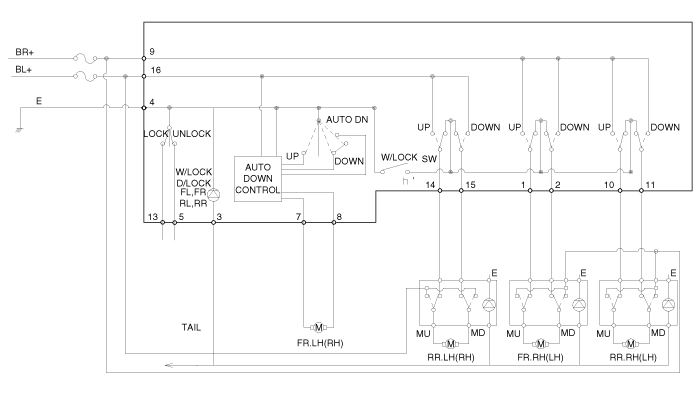

[Auto Down]

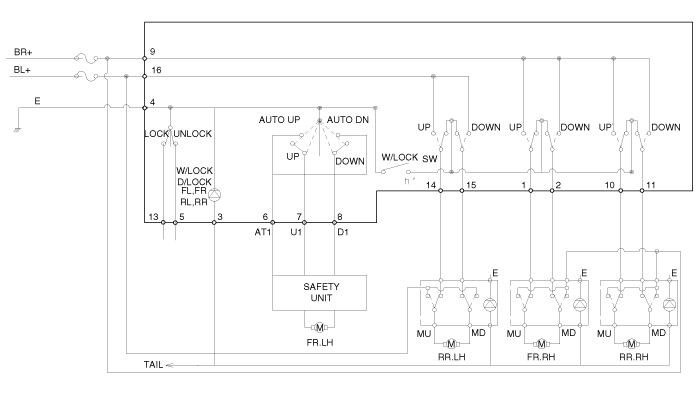

[Safety Up/Down]

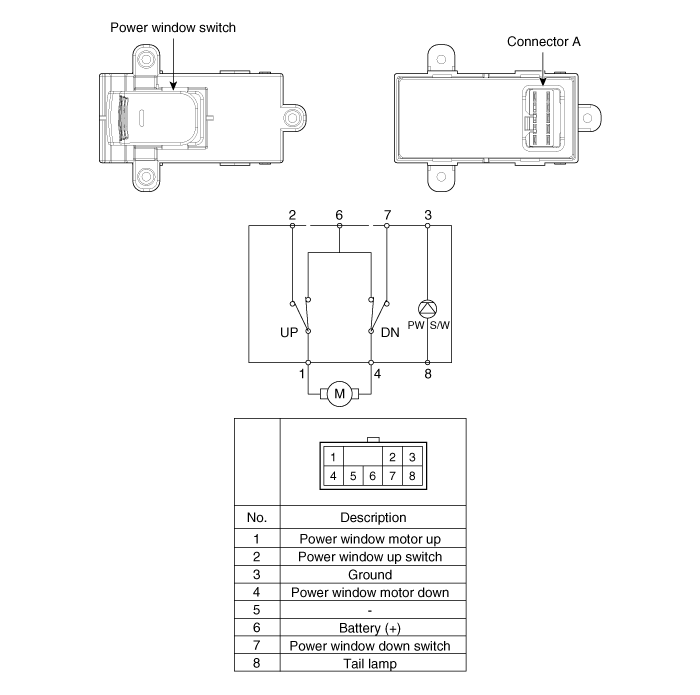

Passenger And Rear Power Window Switch

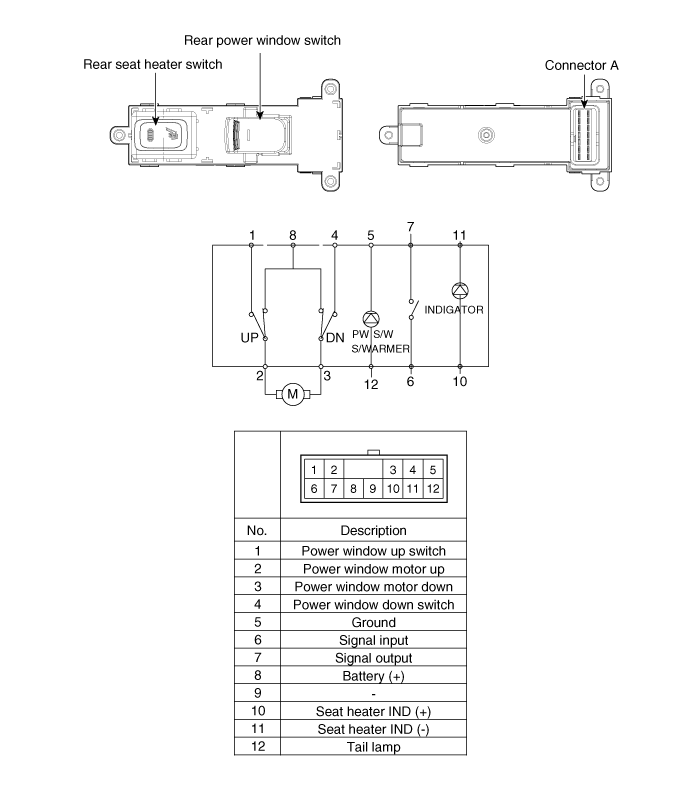

Rear Power Window + Seat Heater Switch

Power Window Motor Repair procedures

Inspection Front Power Window Motor Inspection 1. Remove the front door trim panel. (Refer to the BD group - "Front door") 2. Disconnect the connector from the motor. 3. Connect the motor terminals No.2 ...

Power Window Switch Repair procedures

Inspection Power Window Main Switch Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim panel. (Refer to the BD group - "Front door") 3. Disconnect the connector from ...
