Kia Optima Hybrid: Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve Description and Operation

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Emission Control System / Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve Description and Operation

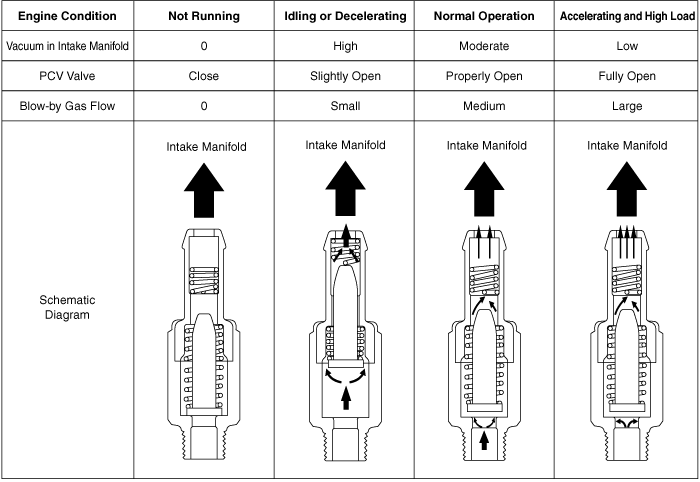

Operation Principle

Repair procedures

Inspection 1. After disconnecting the vapor hose from the PCV valve, remove the PCV valve. 2. Reconnect the PCV valve to the vapor hose. 3. Run the engine at idle, then put a finger over the open end of ...

Positive Crankcase Ventilation (PCV) Valve Repair procedures

Removal 1. Disconnect the vapor hose (A). 2. Remove the PCV valve (B). Inspection 1. Insert a thin stick (A) into the PCV valve (B) from the threaded side to check that the plunger movement.     ...
