Kia Optima Hybrid: Hydraulic System / Oil Pump Components and Components Location

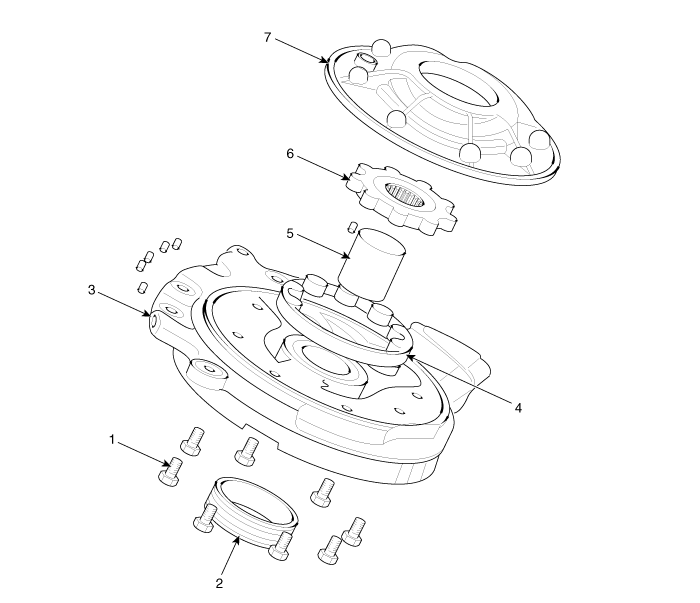

Component

1. Flange bolt
2. Sleeve
3. Reaction shaft support assembly
4. Driven gear
5. Sleeve
6. Driven gear
7. Oil pump housing

Oil Pump Description and Operation

Description Machanical Oil Pump (MOP) The oil pump is built in the transaxle as a single unit with the 26 Brake (26/B) chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication ...

Fluid Components and Components Location

Component Location 1. ATF fill hole (eyebolt) 2. ATF level plug3. ATF drain plug ...
