Kia Optima Hybrid: Automatic Transaxle System / Special Service Tools
| Special Service Tools |
| Tools Name / Number | Illustration | Description |
| Engine support fixture 09200-3N000 |
| Removal and installation of the transaxle (? Permit operating with 09200-38001) |
Oil seal installer A: 09452-26100 (Installer) B: 09231-H1100 (Handle) |
| |
Inhibitor switch guide pin 09480-A3800 |
|
| Personal Protective Equipment |
| Name | Illustration | Description |
| Insulation glove |
| Used when inspecting or working on the high voltage components [Insulation performance : 1000V / 300A or above] |
| Insulation shoes |
| Used when inspecting or working on the high voltage components |
| Insulation clothes |
| |
| Insulation helmet |
| |
| Safety glasses |
| Used in the case below • During Removal & installation or inspection of the high voltage battery terminals or wiring, which spark might happen. • During working on the high voltage battery pack assembly. |
| Face shield |
| |
| Insulation mat |
| Putting the removed high voltage components on the insulation mat to prevent safety accidents. |
| Insulation sheet |
| Covering
the high voltage components with insulation sheet to prevent people who
don’t wear the personal protective equipment from safety accidents. |

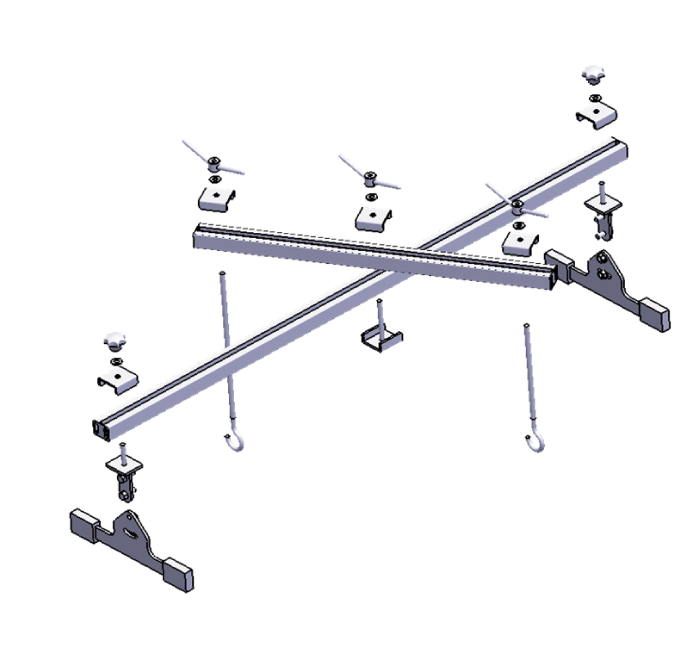

| Engine support fixture special tool assembly drawing |
Specifications
Specifications ItemSpecificationsTransmission typeA6MF2HEngine modelGasoline 2.4Torsion damperDMF Type long travelTorsion damper sizeO 281.4 mm (11.0787 in.)Engine clutchMulti disc wet clutchOil ...
