Kia Optima Hybrid: Audio / Multimedia jack Schematic Diagrams

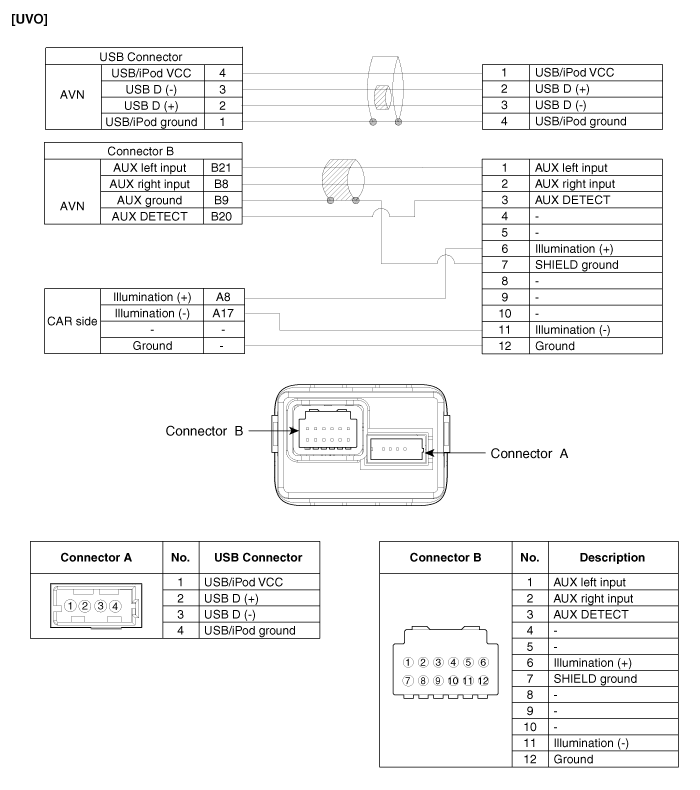

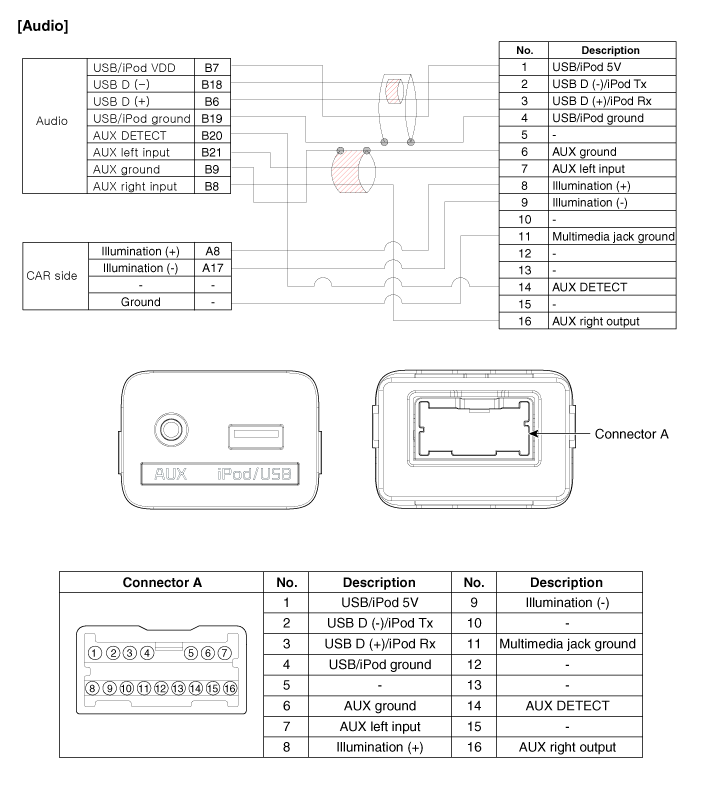

Circuit Diagram

Audio Remote Control Repair procedures

Inspection 1. Check the audio remote control switch (A) for resistance between connector terminals in each switch position. [LH-Audio] [LH-Mute] [Audio] SwitchConnector terminalResistance (±5%)Volume ...

Multimedia jack Description and Operation

Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle''s sound system when it ...
