Specification

Ignition System

Items		Specification
Ignition coil	Primary resistance	0.62 ± 10 % (?)
	Secondary resistance	7.0 ± 15 % (k?)
Spark plugs	Type	FXU16HR11
	Gap	1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.)

Charging System

Items		Specification

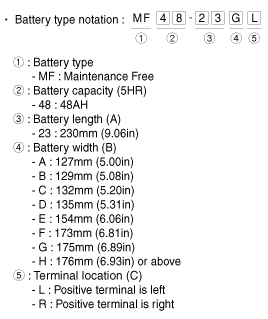

Auxiliary 12V battery	Type	54-28GR
	Cold cranking amperage [at -18°C(-0.4°F)]	600A
	Reserve capacity	113min
	Specific gravity [at 20°C(68°F)]	1.28 ± 0.01

•	COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.

•	RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).
