Kia Optima Hybrid: Indicators And Gauges / Instrument Cluster Description and Operation

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Description and Operation

Description

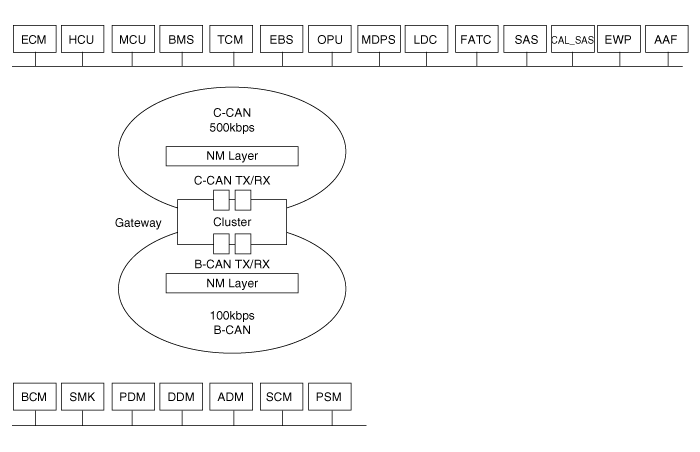

Cluster Network Diagram

ECM	Engine Control Module
HCU	Hybrid Control Module
MCU	Motor Control Module
BMS	Battery Management System
TCM	Transaxle Control Module
EBS	Electronic Brake System
OPU	Oil Pump Unit
MDPS	Motor Driving Power Steering
LDC	Low DC/DC Converter
FATC	Full Automatic Temperature Control
EWP	Electronic Water Pump
AAF	Active Air Flap
BCM	Body Control Module
SMK	Smart Key unit
PDM	Power Distribution Module
DDM	Driver Door Module
ADM	Assist Door Module
SCM	Steering Control Module
PSM	Power Seat Module

Active ECO System

The ECO is a feature for improving fuel efficiency while driving. It is engaged by activating the switch on the steering wheel.

The detailed functions of the ECO features are listed as a follows.

Shift Pattern

–	ECO Shift Pattern : Reduce shift pattern, Prevent lift foot-up

Electrical Load

–	Reduce LDC electrical load

Driving Mode

–	Torque Control : Increase regenerative energy by disengaging engine clutch in all deceleration area

A/C

–	ECO A/C Mode : Controls the temperature at about 2~3°C higher than normal modes

Regenerative Braking

–	Enhanced regenerative braking performance

Others

–	Achieve efficient SOC control by using drive modes that minimize power loss

Instrument Cluster Components and Components Location

Components Connector Pin Information No.DescriptionNo.Description1-21Immobilizer input2Heated wheel indicator input22Fuel sendor (+) input3Aig bag (+) input23Trip switch 2 (+) input(Trip button)4Speed ...

Instrument Cluster Schematic Diagrams

Circuit Diagram ...
