Kia Optima Hybrid: Lighting System / Head Lamps Components and Components Location

Component(1)

1. Head lamp assembly lens & housing
2. Head lamp (High) lamp
3. Dust cap
4. Socket
5. Turn signal/ Position lamp
6. Head lamp (Low) lamp

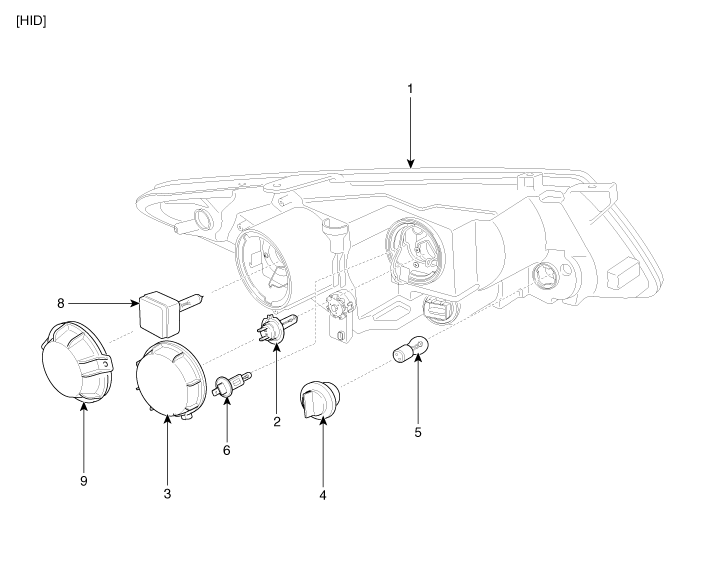

Component(2)

1. Head lamp assembly lens & housing
2. Head lamp (High) lamp
3. Dust cap
4. Socket
5. Turn signal/ Position lamp
6. Static bending lamp
7. Head lamp(LOW) bulb (HID) & Ignitor
8. Dust cover(LOW)

Components and Components Location

Component Location(1) 1. Head lamp (Low)2. Head lamp (High)3. Turn signal lamp (and Posistion lamp)4. Position lamp (LED) and DRL5. Side marker6. Front fog lamp7. Overhead console lamp8. Room lamp9. Vanity ...

Head Lamps Description and Operation

HID Head Lamp 1. Bulb (1) Elements Xenon gas: Xenon gas activates the initial reaction for rapid illuminating. Molybdenum electrode: anode arcing Metal halide salts: color composing component (2) Lightening ...
