Kia Optima Hybrid: Lighting System / Components and Components Location

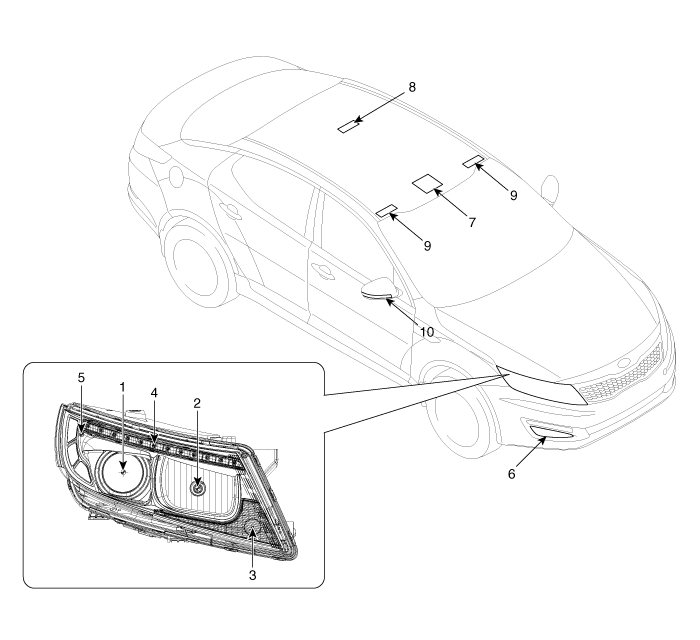

Component Location(1)

1. Head lamp (Low)
2. Head lamp (High)
3. Turn signal lamp (and Posistion lamp)
4. Position lamp (LED) and DRL
5. Side marker
6. Front fog lamp
7. Overhead console lamp
8. Room lamp
9. Vanity lamp
10. Turn signal lamp (O/S mirror)

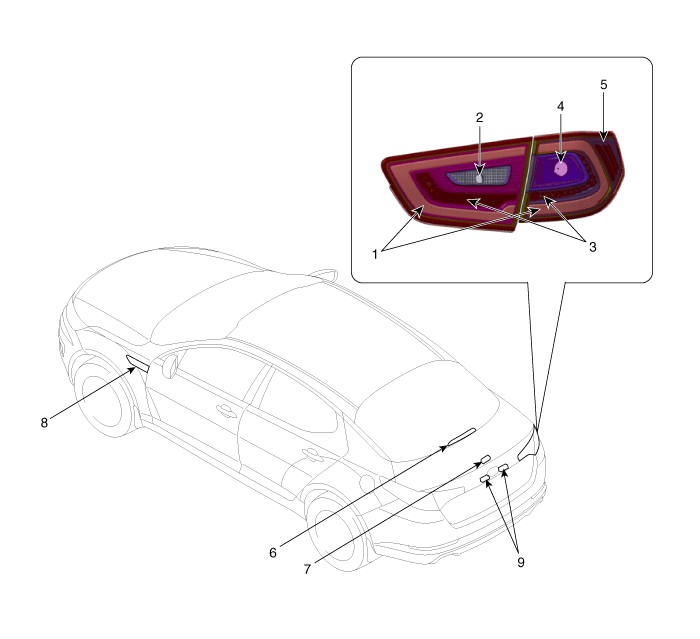

Component Location(2)

1. Tail lamp
2. Back up lamp
3. Stop/Tail lamp
4. Rear turn signal lamp
5. Side marker lamp
6. High mounted stop lamp
7. Luggage lamp
8. Side repeater
9. License plate lamp

Specifications

Specification ItemsBulb TypeBulb Wattage (W)FrontHead lamp(STD)LowH7S55HighH7L55Head lamp(HID)LowD1S35HighH7L55Turn signal lampPY28/8W28Position lampPY28/8W or LED8 or LEDFog lampH8L or LED35 or LEDSide ...

Head Lamps Components and Components Location

Component(1) 1. Head lamp assembly lens & housing2. Head lamp (High) lamp3. Dust cap4. Socket5. Turn signal/ Position lamp6. Head lamp (Low) lamp Component(2) 1. Head lamp assembly lens & housing2. ...
