Kia Optima Hybrid: Auto Lighting Control System / Components and Components Location

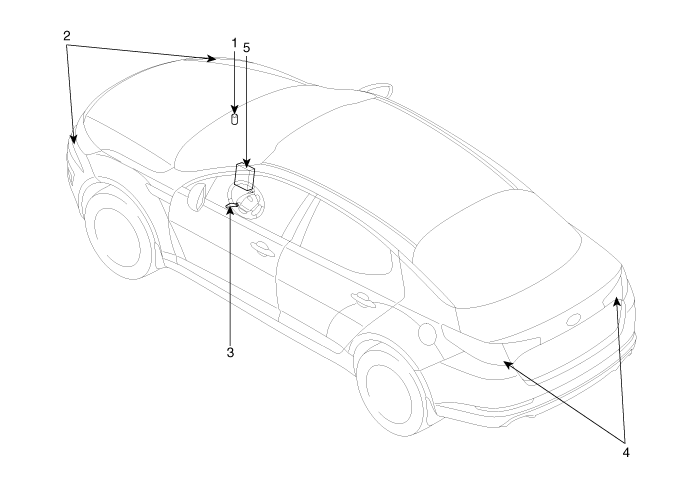

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. Body control module (BCM)

Specifications

Specifications ItemsSpecificationsRated voltage5VLoadMax. 1mA (When head lamp lighting)Illuminations (LUX)501.42 ± 0.31V1002.63 ± 0.58V1503.84 ± 0.84V ...

Schematic Diagrams

Circuit Diagram ...
