Kia Optima Hybrid: Parking Assist System / Components and Components Location

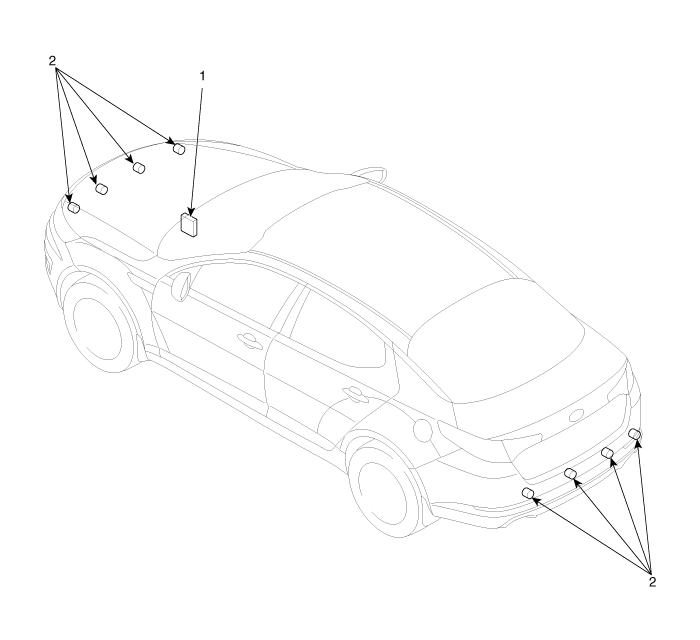

Component Location

1. BCM
2. Ultrasonic sensor

? Parking assist control unit function and buzzer are built in BCM (body control unit).

Specifications

Specification ItemSpecificationUltrasonic sensorVoltage ratingDC 12 VDetecting range40 cm ~ 120 cmOperation voltageDC 9 ~ 12 VOperation currentMAX 300 mAOperation temperature-30°C ~ +80°C (-22°C ~ +176°C)Operation ...

Description and Operation

System Overview PAS(Parking Assist System) is an electronic driving aid device warning driver to be cautious when they park or speed low after detecting an object on side and behind of vehicle by using ...
