Kia Optima Hybrid: Hydraulic System / Components and Components Location

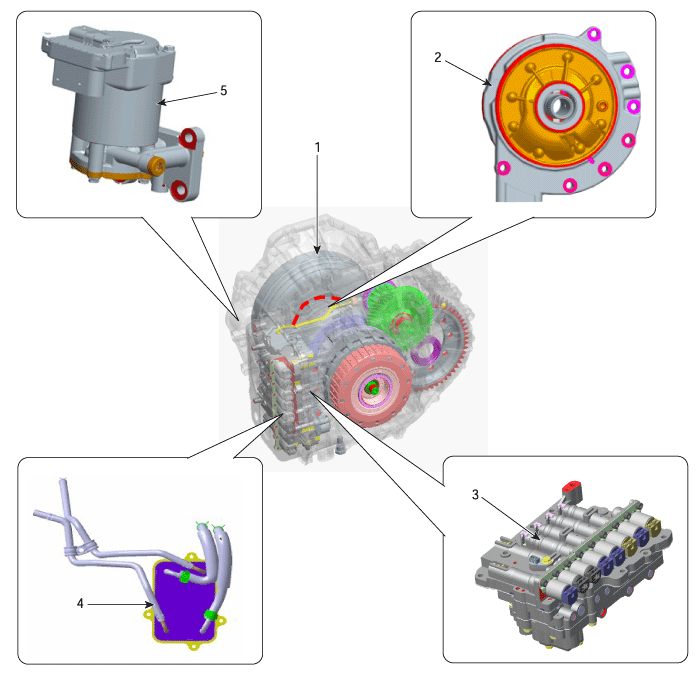

Component Location

1. Automatic transaxle assembly
2. Machanical oil Pump assembly (MOP)
3. Valve body assembly
4. ATF Warmer
5. Electric oil pump (EOP)

Description and Operation

Description The hydraulic system consists of oil, an oil filter, oil pump, and a valve body (valves and solenoid valves). The machanical oil pump is in the transaxle and is mechanically turned by the input ...

Oil Pump Description and Operation

Description Machanical Oil Pump (MOP) The oil pump is built in the transaxle as a single unit with the 26 Brake (26/B) chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication ...
