Kia Optima Hybrid: Automatic Transaxle Control System / Shift Cable Components and Components Location

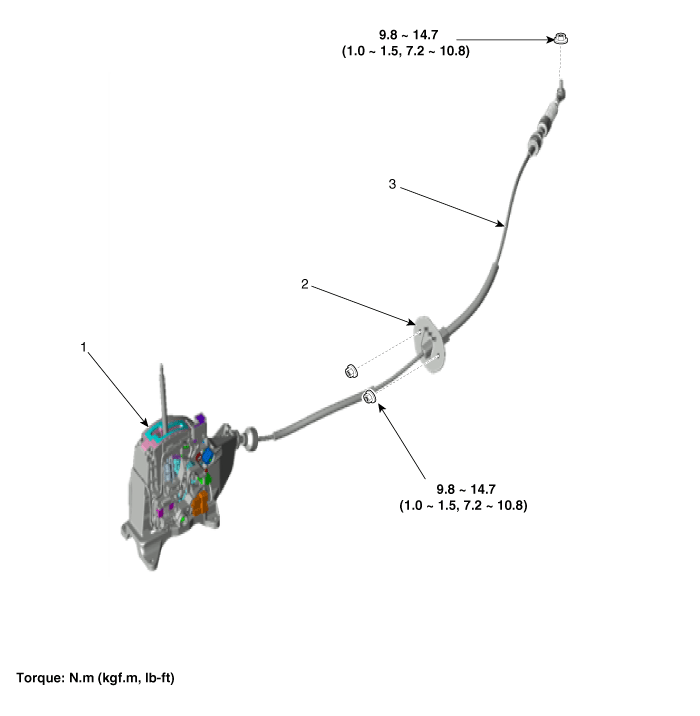

Components

1. Shift lever assembly
3. Shift cable assembly
2. Shift cable retainer
?

Shift Lever Repair procedures

Removal 1. Disconnect the 12V battery negative (-) cable. 2. Remove the knob (A) and boots (B) by pulling the direction of arrow after removing the boots from the console upper cover. 3. Remove the floor ...

Shift Cable Repair procedures

Removal     • Be sure to read and follow the “General Safety Information and Caution” before doing any work related with the high voltage system. Failure to follow the safety instructions ...
