Kia Optima Hybrid: Air Conditioning System / Cluster ionizer Components and Components Location

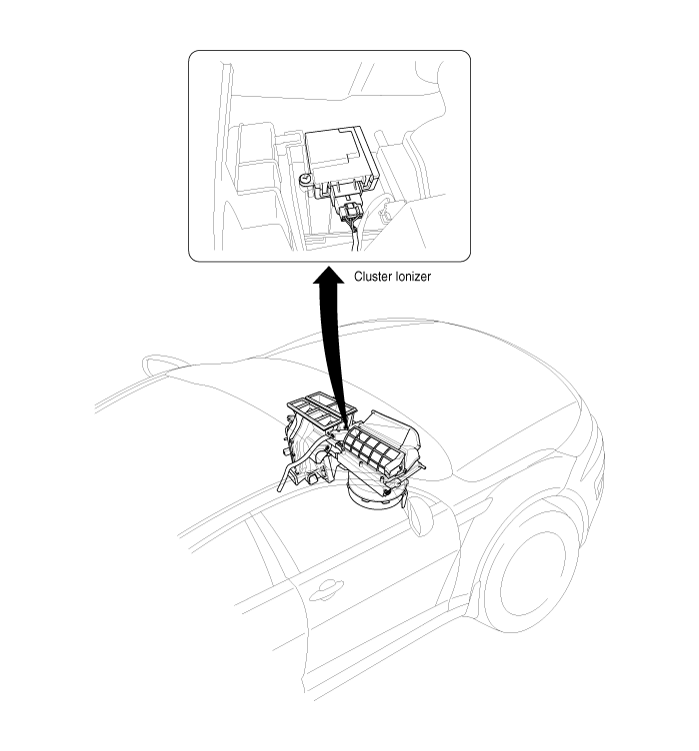

Component Location

Ambient Sensor Repair procedures

Inspection 1. Ignition "OFF" 2. Disconnect ambient temperature sensor. 3. Check the resistance of ambient temperature sensor between terminals 1 and 2 whether it is changed by changing of the ambient temperature. ...

Cluster ionizer Description and Operation

Description 1. The function of cluster ion generator is cleaning air by sterilizing and dissolving of air conditioner. 2. The function of cluster ion generator is controlling mold caused by stench of air ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Underdrive Brake Control Solenoid Valve (UD/B_VFS) Repair procedures


Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose (A). (2) Disconnect the air intake hose (B) and then remove the air cleaner assembly (C). Tightening ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Virtual Engine Sound Speaker Repair procedures


Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the front wheel guard. (Refer to the BD group - "Front bumper") 3. Remove the VESS speaker (A) after removing the bolts and connector. Installation 1. Install the VESS speaker and connector. 2. Install the front wheel guard. ...
