Kia Optima Hybrid: Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve (UD/B_VFS) Schematic Diagrams

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve (UD/B_VFS) Schematic Diagrams

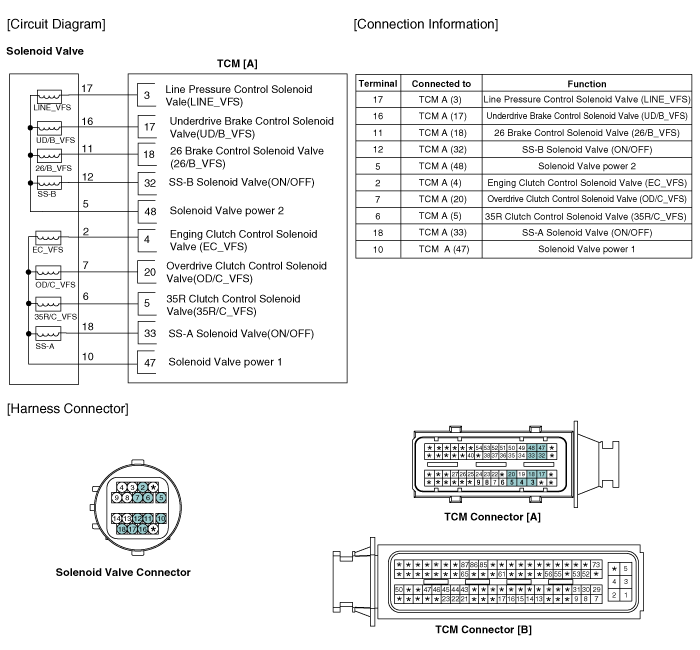

Circuit Diagram

Underdrive Brake Control Solenoid Valve (UD/B_VFS) Specifications

Specifications Direct control VFS [UD/B] Control type : Normal high type Control Pressure kpa(kgf/cm?, psi)500.14 ~ 9.81(5.1 ~ 0.1, 72.54 ~ 1.42)Current value (mA)50 ~ 850 Internal resistance (?)5.1 ...

Underdrive Brake Control Solenoid Valve (UD/B_VFS) Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose ...
