Kia Optima Hybrid: Cruise Control System / Troubleshooting

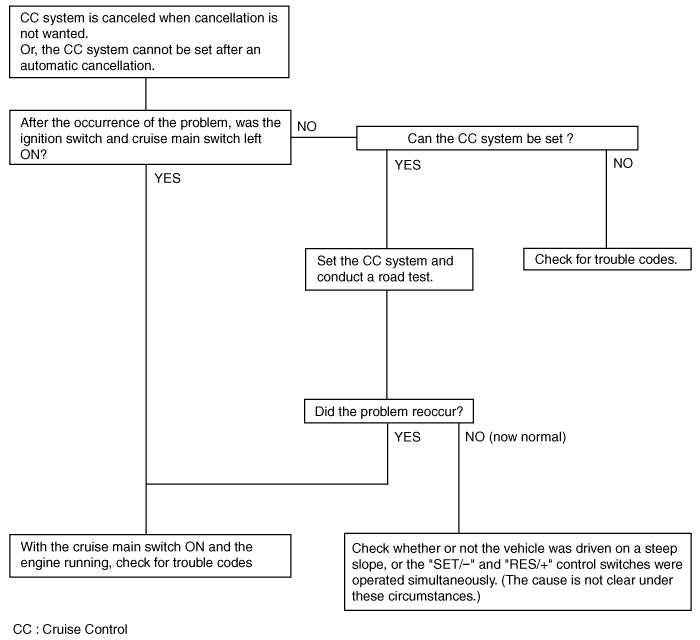

| Trouble Symptom Charts |
| Trouble Symptom 1 |
| Trouble symptom | Probable cause | Remedy |
| The set vehicle speed varies greatly upward or downward "Surging" (repeated alternating acceleration and deceleration) occurs after setting | Malfunction of the vehicle speed sensor circuit | Repair the vehicle speed sensor system, or replace the part |
| Malfunction of brake system | Check input and output signals at brake system |
| Trouble symptom | Probable cause | Remedy |
| The CC system is not canceled when the brake pedal is depressed | Damaged or disconnected wiring of the brake pedal switch or malfunction of the brake stroke sensor or circuit | Repair the harness or replace the brake pedal switch |
| Malfunction of the brake signals or brake system | Check input and output signals at HCU or brake system |
| Trouble symptom | Probable cause | Remedy |
| The
CC system is not canceled when the shift lever is moved to the "N"
position (It is canceled, however, when the brake pedal is depressed) | Damaged or disconnected wiring of inhibitor switch input circuit | Repair the harness or repair or replace the inhibitor switch |
| Improper adjustment of inhibitor switch | ||
| Malfunction of the TCU signals | Check input and output signals at TCU |
| Trouble symptom | Probable cause | Remedy |
| Cannot decelerate (coast) by using the "SET/–" switch | Temporary damaged or disconnected wiring of "SET/–" switch input circuit | Repair the harness or replace the "SET/–" switch |
| Malfunction of the cluster signals | Check input and output signals at cluster |
| Trouble symptom | Probable cause | Remedy |
| Cannot accelerate or resume speed by using the "RES/+" switch | Damaged or disconnected wiring, or short circuit, or "RES/+" switch input circuit | Repair the harness or replace the "RES/+" switch |
| Malfunction of the cluster signals | Check input and output signals at cluster |
| Trouble symptom | Probable cause | Remedy |
| CC
system can be set while driving at a vehicle speed of less than 40km/h
(25mph), or there is no automatic cancellation at that speed | Malfunction of the vehicle-speed sensor circuit | Repair the vehicle speed sensor system, or replace the part |
| Malfunction of the brake system | Check input and output signals at brake system |
| Trouble symptom | Probable cause | Remedy |
| The cruise main switch indicator lamp does not illuminate (But CC system is normal) | Damaged or disconnected bulb of cruise main switch indicator lamp | Repair the harness or replace the part. |
| Harness damaged or disconnected |
