Kia Optima Hybrid: Multifunction switch / Components and Components Location

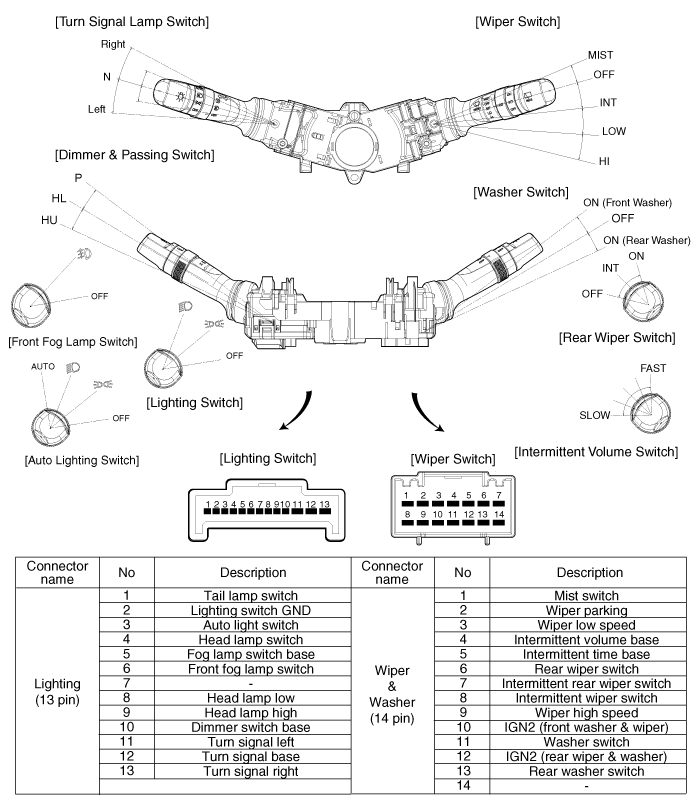

Component(1)

Component(2)

1. Steering column shaft
2. Lighting switch
3. Wiper and washer switch
4. Screw
5. Clock spring
6. Steering angle sensor

Specifications

Specifications ItemsSpecificationsRated voltageDC 12VOperating temperature range-30°C ~ +80°C (-22 ~ +176°F)Rated loadDimmer & passing switchHigh : 0.2A (Relay load)Low : 0.2A (Relay load)Passing ...

Repair procedures

Inspection Lighting Switch Inspection With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function ...
