Kia Optima Hybrid: SRSCM / Seat Track Position Sensor (STPS) Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Restraint / SRSCM / Seat Track Position Sensor (STPS) Components and Components Location

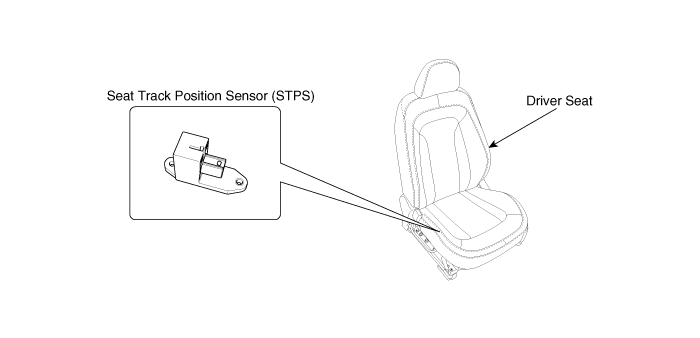

Components

Seat Track Position Sensor (STPS) Description and Operation

Description The STPS operates via a non-contacting magnetic proximity sensing device combined with a simple electronic circuit resulting in the ability of producing two separate and distinct logic level ...

Seat Track Position Sensor (STPS) Repair procedures

Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly. (Refer to BD group) 3. Loosen the two STPS screws, then remove ...
