Kia Optima Hybrid: Seat Electrical / Seat Heater Components and Components Location

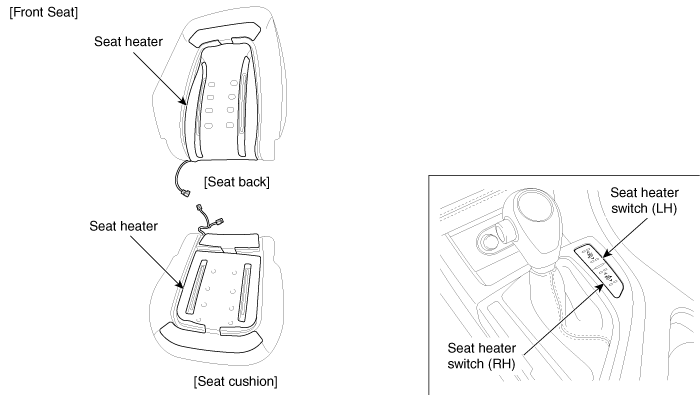

Component Location

Seat Heater Switch Repair procedures

Inspection Front Seat Heater Switch 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console upper cover. (Refer to the BD group - "Console") 3. Remove the seat heater switch connectors ...

Seat Heater Schematic Diagrams

Circuit Diagram ...
