Kia Optima Hybrid: Panoramaroof / Schematic Diagrams

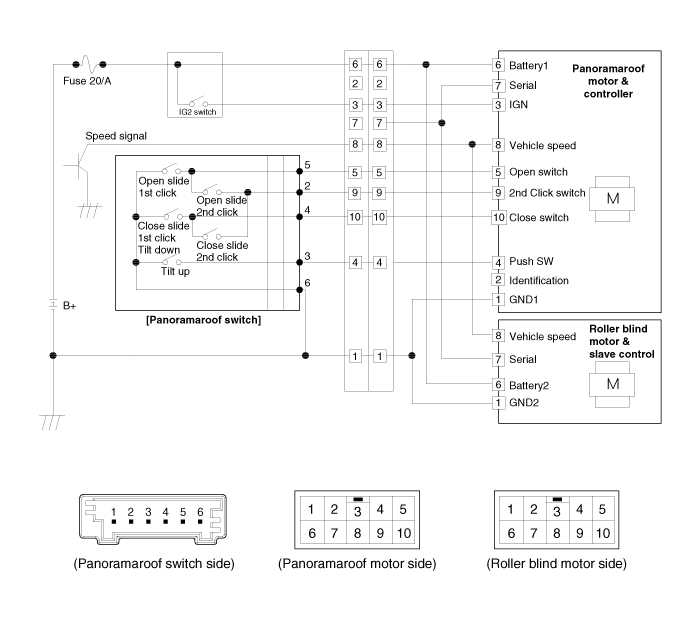

Circuit Diagram (1)

Circuit Diagram (2)

Components and Components Location

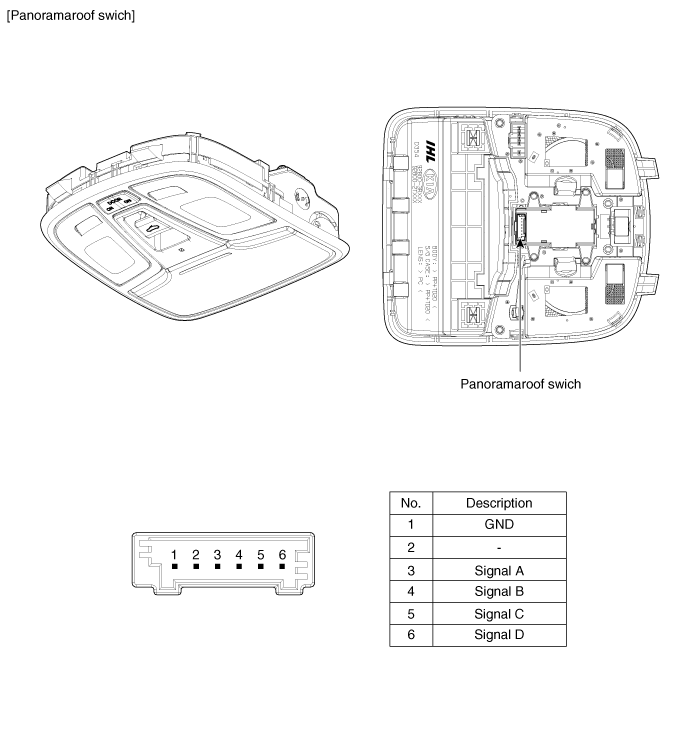

Component Location 1. Panoramaroof2. Panoramaroof switch3. Roller blind motor & slave controller4. Panoramaroof motor & controller ...

Panoramaroof Switch Repair procedures

Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the overhead console lamp assembly. (Refer to the BD group - "Roof trim") 3. Check for continuity between the terminals. 4. If the ...
