Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Components

Components and Components Location

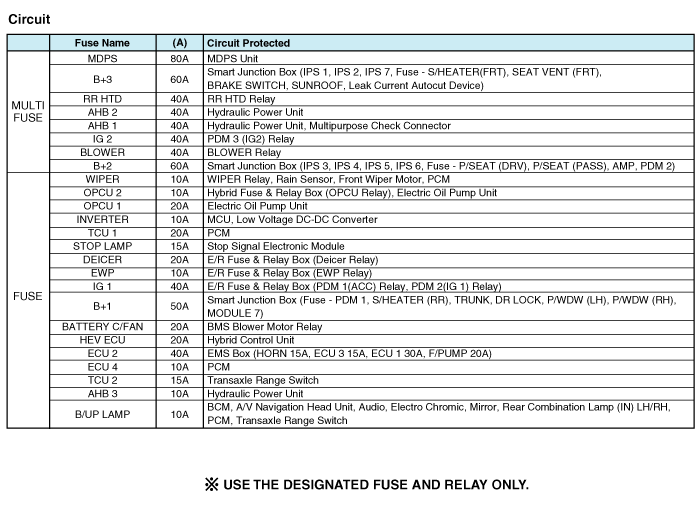

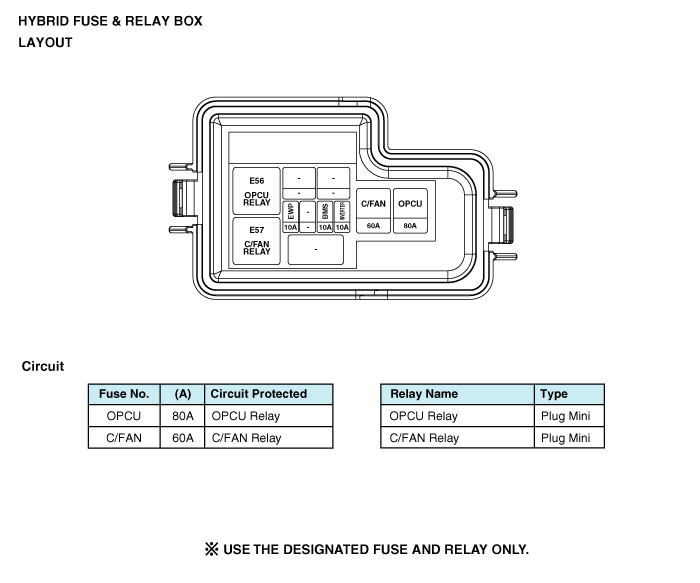

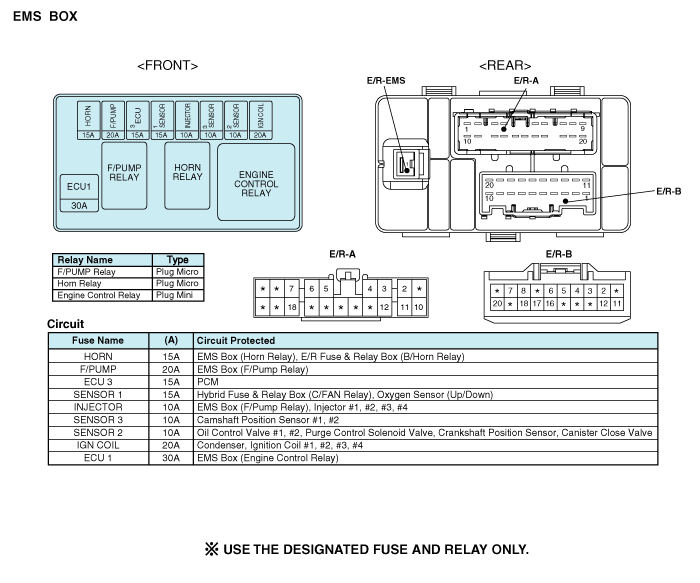

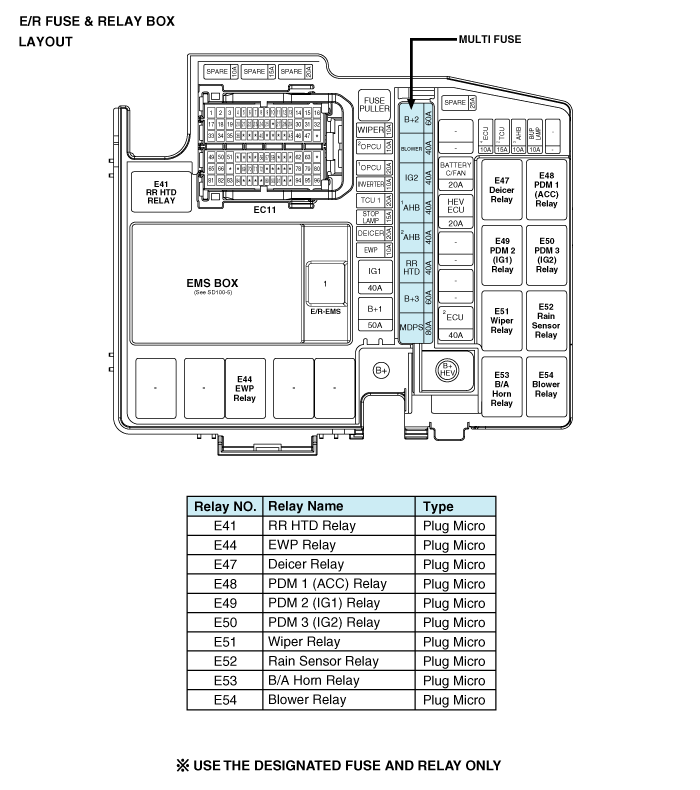

Component Location 1. Rear defogger relay2. EWP relay3. Deicer relay4. ACC realy5. IG1 relay6. IG2 relay7. Wiper relay8. Rain sensor relay9. Burglar alarm horn relay10. Blower relay11. Fuel pump relay12. ...

Relay Box (Engine Compartment) Repair procedures

Inspection Power Relay Test (Type A)     – Do not use pliers. – Pliers will damage the relays, which could cause the engine to stall or not start. – Carefully remove the relay using the ...
