Kia Optima Hybrid: Rear Suspension System / Rear Shock Absorber Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Suspension System / Rear Suspension System / Rear Shock Absorber Components and Components Location

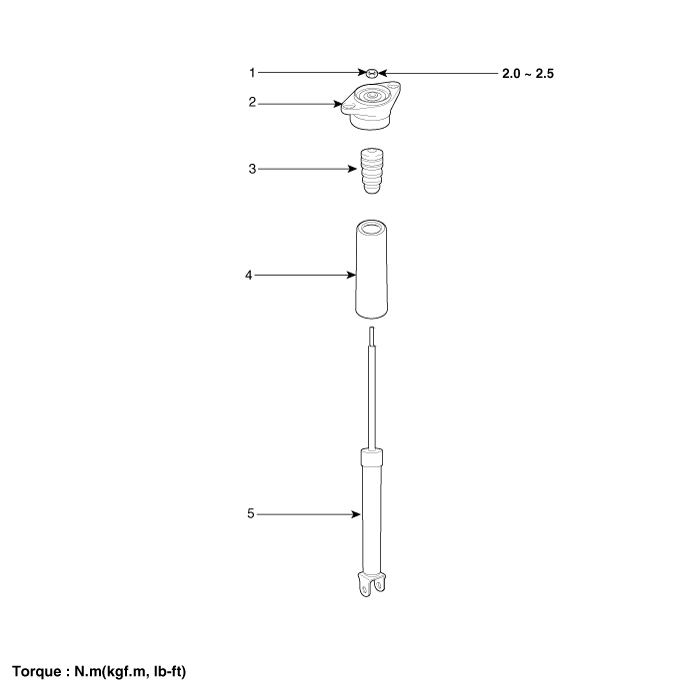

Components

1. Self locking nut
2. Bracket assembly
3. Bumper rubber
4. Dust cover
5. Shock absorber



Components and Components Location

Components Location 1. Sub frame2. Assist arm3. Trailing arm4. Rear disc5. Rear upper arm6. Rear shock absorber7. Coil spring ...

Rear Shock Absorber Repair procedures

Replacement 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9N.m(9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to damage the hub bolts when removing the rear wheel ...
