Kia Optima Hybrid: AHB(Active Hydraulic Boost) System / Rear Disc Brake Components and Components Location

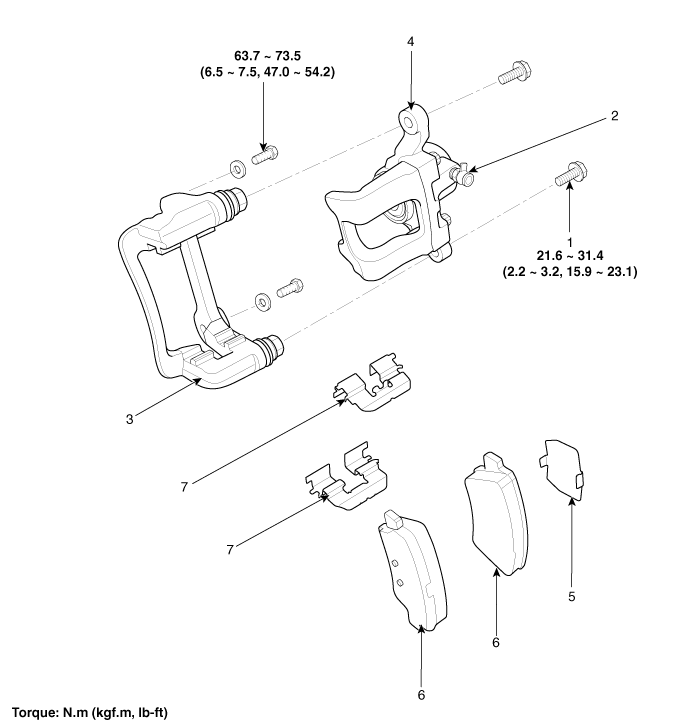

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer
