Kia Optima Hybrid: Windshield Wiper/Washer / Rain Sensor Schematic Diagrams

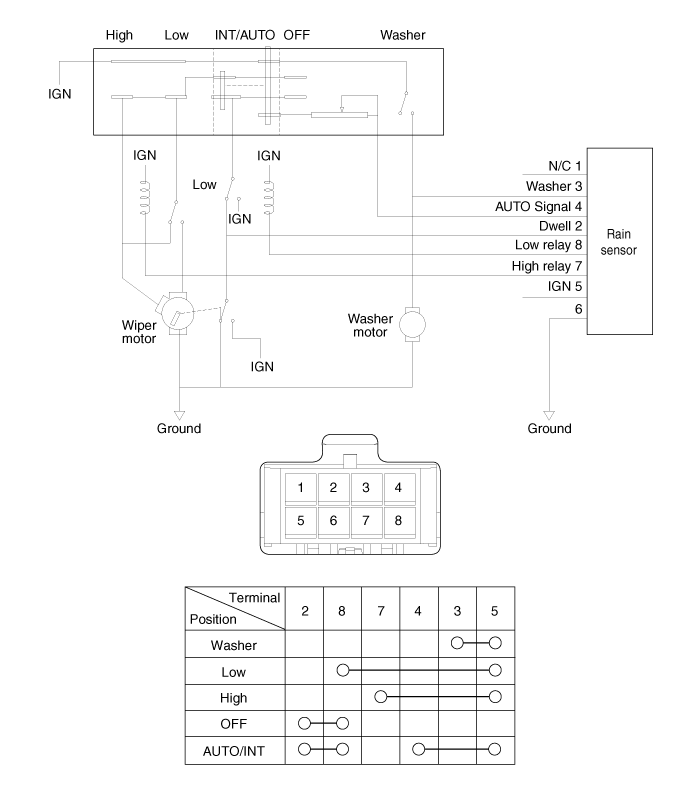

Circuit Diagram

Front Washer Motor Repair procedures

Inspection 1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.     Before filling the reservoir tank with water, check the filter for foreign material ...

Rain Sensor Description and Operation

Description The Rain sensing windshield wiper system is a wiper system that, in addition to providing normal wiper functions off, mist, manual low speed, manual high speed, and wash, provides automatic ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Cylinder Head Components and Components Location


Components 1. Camshaft bearing cap2. Camshaft front bearing cap3. Exhaust camshaft4. Intake camshaft5. Exhaust CVVT assembly6. Intake CVVT assembly7. Exhaust camshaft upper bearing8. Exhaust camshaft lower bearing9. MLA (Mechanical lash adjuster)10. Retainer lock11. Retainer 12. Valve spring13. Valve ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Rain Sensor Description and Operation


Description The Rain sensing windshield wiper system is a wiper system that, in addition to providing normal wiper functions off, mist, manual low speed, manual high speed, and wash, provides automatic control of automatic intermittent automatic low, and automatic high speeds. When the ignition key is ...
