Kia Optima Hybrid: Air Conditioning System / Components and Components Location

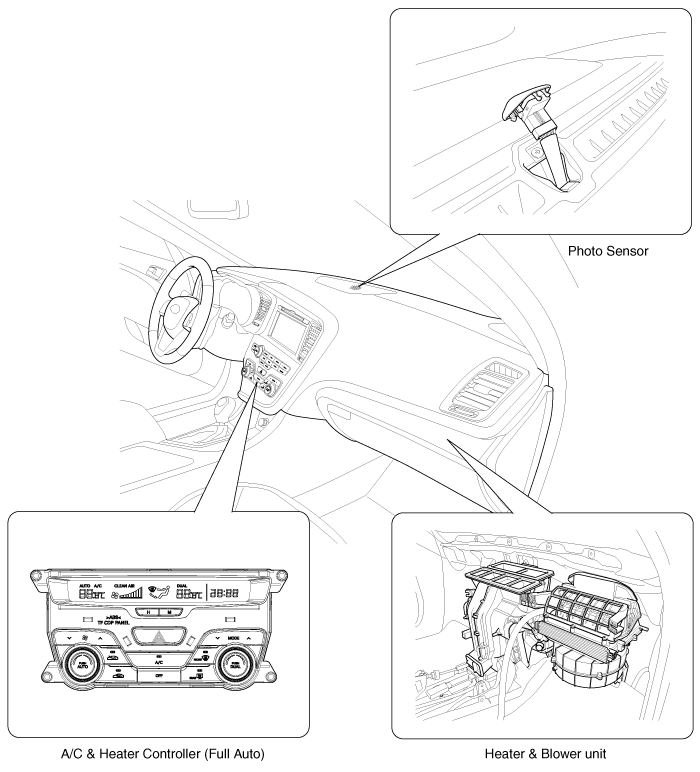

Component Location Index

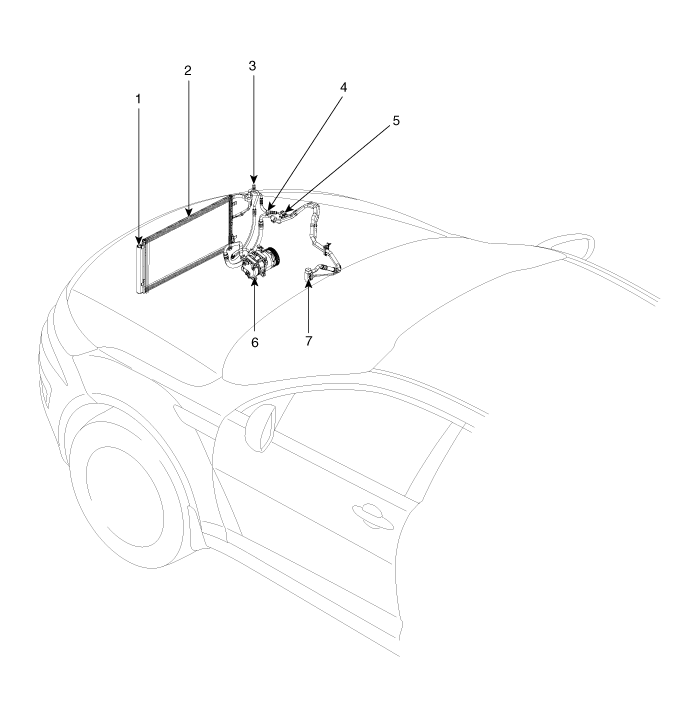

Engine Room

1. Receiver Drier
2. Condenser
3. Service Port (High)
4. Service Port (Low)
5. A/C Pressure Transducer
6. Compressor
7. Expansion Valve

Interior

Repair procedures

Refrigerant System Service Basics • Since the electric compressor uses high-voltage, you should use PVE or POE oil which have high Volumetric Resistivity. • Do not use the same A/C recovery / charging ...

Compressor Oil Repair procedures

Oil Specification 1. The HFC-134a system requires synthetic (POE) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. 2. Compressor (POE) oil varies ...
