Kia Optima Hybrid: Seat Electrical / Power Seat Control Switch Schematic Diagrams

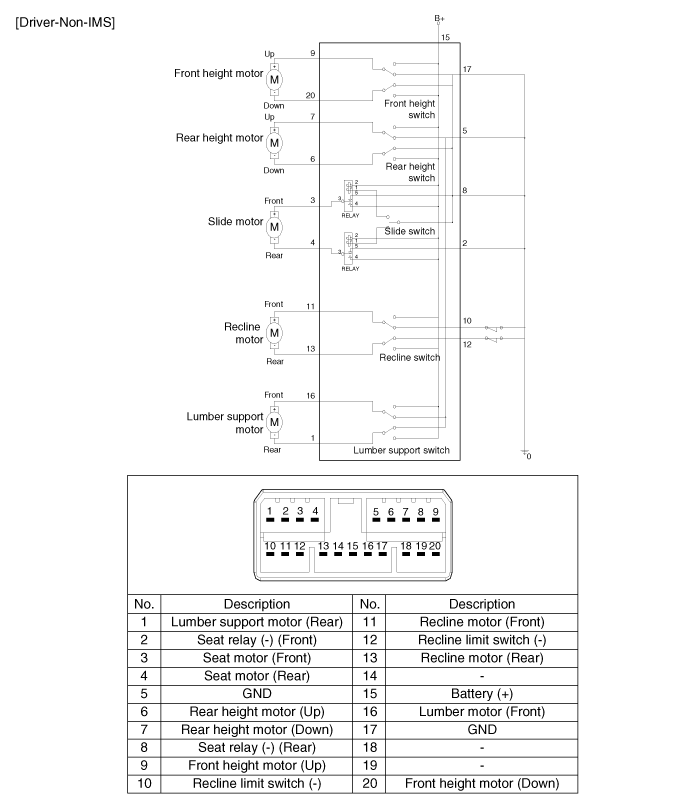

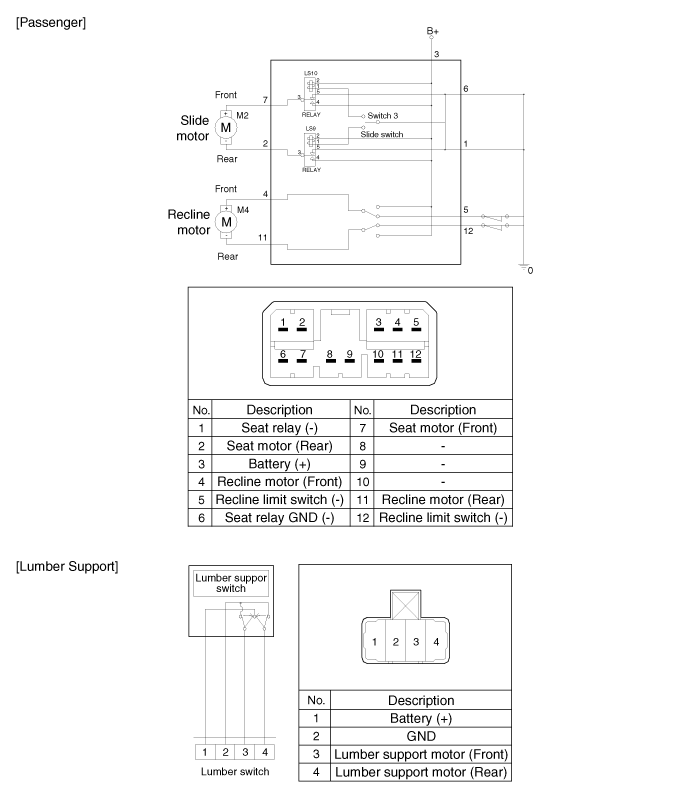

Circuit Diagram

Power Seat Motor Repair procedures

Inspection Power Seat Motor 1. Disconnect the connectors for each motor. A : Front height motor B : Slide motor C : Rear height motor D : Recline motor E : Lumber support motor 2. With the battery connected ...

Power Seat Control Switch Repair procedures

Inspection With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch. A : Power seat control ...
