Kia Optima Hybrid: Automatic Transaxle Control System / Output Speed Sensor Schematic Diagrams

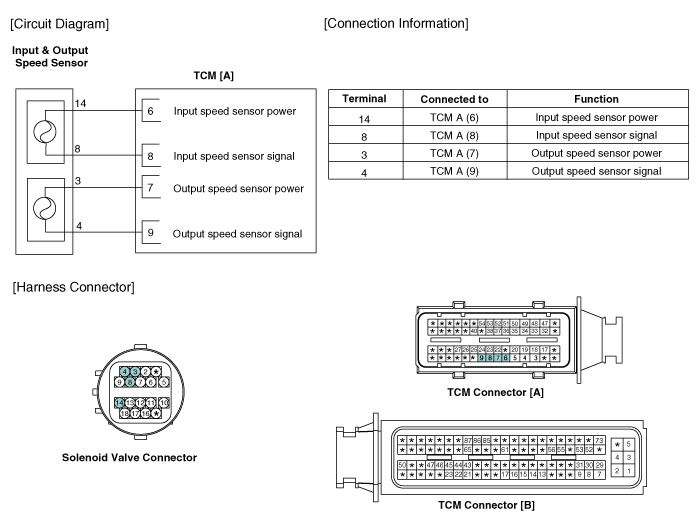

Circuit Diagram

Output Speed Sensor Specifications

Specifications Type: Hall effect sensor Operation condition (°C)°F((-)40 ~ 150)) -104 ~ 302Air gap(mm)in.(0.25 ~ 1.9)0.00984 ~ 0.0748Output voltageHigh1.18 ~ 1.68Low0.59 ~ 0.84 ...

Output Speed Sensor Troubleshooting

Signal Waveform ...
