Kia Optima Hybrid: Evaporative Emission Control System / NVLD(Natural Vacuum Leakage Detection) Schematic Diagrams

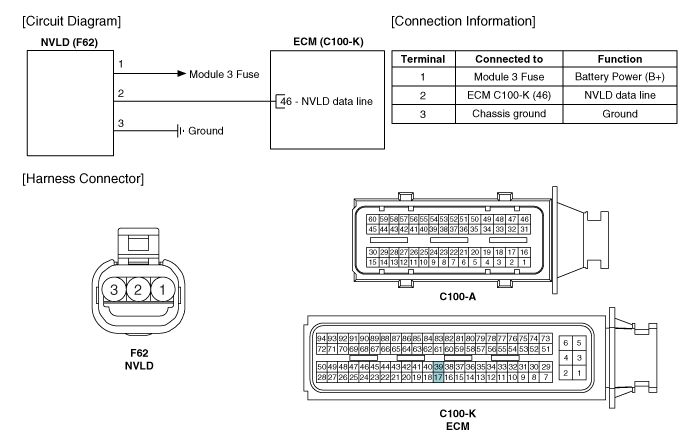

Circuit Diagram

NVLD(Natural Vacuum Leakage Detection) Troubleshooting

Waveform ...

NVLD(Natural Vacuum Leakage Detection) Repair procedures

Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal. 2. Disconnect the NVLD connector (A). 3. Disconnect the ventilation hoses (B,C). 4. Remove the NVLD after by loosening ...
