Kia Optima Hybrid: Evaporative Emission Control System / NVLD(Natural Vacuum Leakage Detection) Troubleshooting

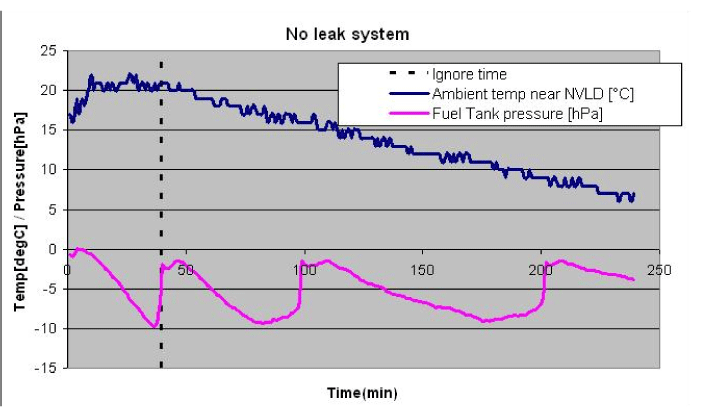

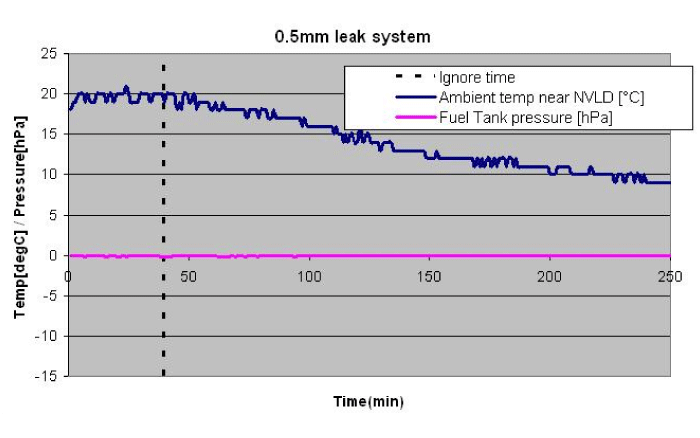

Waveform

NVLD(Natural Vacuum Leakage Detection) Specifications

Specification Pressure [kPa (kgf/cm?, in H2O)Output Voltage (V)-6.67 (-0.068, -26.8)0.502.5+6.67 (0.068, 26.8)4.5 ...

NVLD(Natural Vacuum Leakage Detection) Schematic Diagrams

Circuit Diagram ...
