Kia Optima Hybrid: Intake And Exhaust System / Muffler Components and Components Location

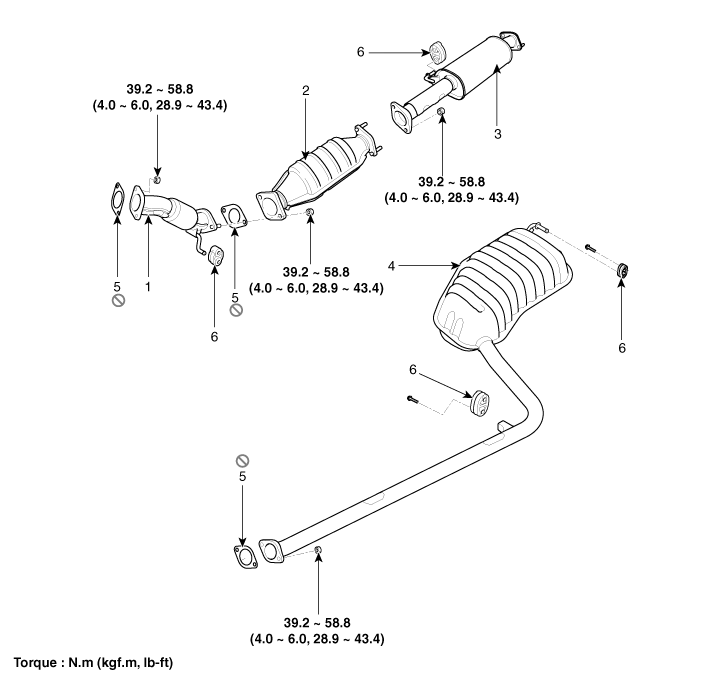

Components

1. Front muffler
2. Catalytic converter
3. Center muffler

4. Main muffler
5. Gasket
6. Hanger

Exhaust Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. Tightening torque: 4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft) 3. Disconnect the oxygen sensor connectors ...

Muffler Repair procedures

Removal and Installation 1. Remove the front muffler (A). Tightening torque: 39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft) 2. Remove the catalytic converter (A). Tightening torque: 39.2 ~ 58.8 N.m ...
