Kia Optima Hybrid: Automatic Transaxle Control System / Input Speed Sensor Schematic Diagrams

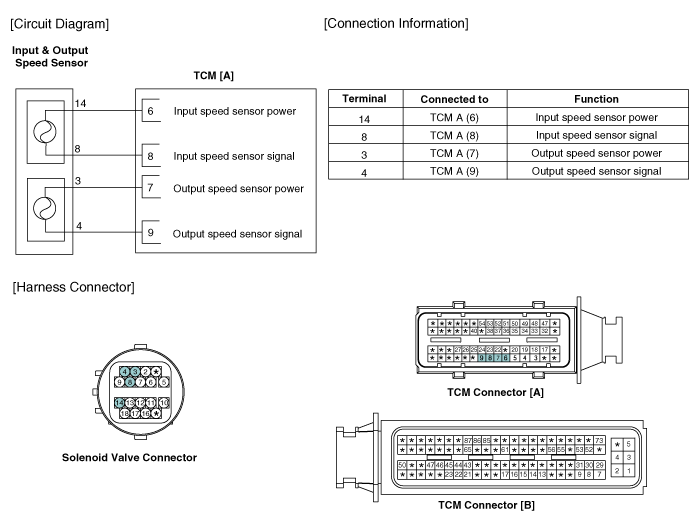

Circuit Diagram

Input Speed Sensor Specifications

Specifications Type: Hall effect sensor Operation condition (°C)°F((-)40 ~ 150)) -40 ~ 302Air gap(mm)in.(0.95~1.65) 0.037 ~ 0.065 Output voltage(V)High1.18 ~ 1.68Low0.59 ~ 0.84 ...

Input Speed Sensor Troubleshooting

Signal Waveform ...
