Kia Optima Hybrid: Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams

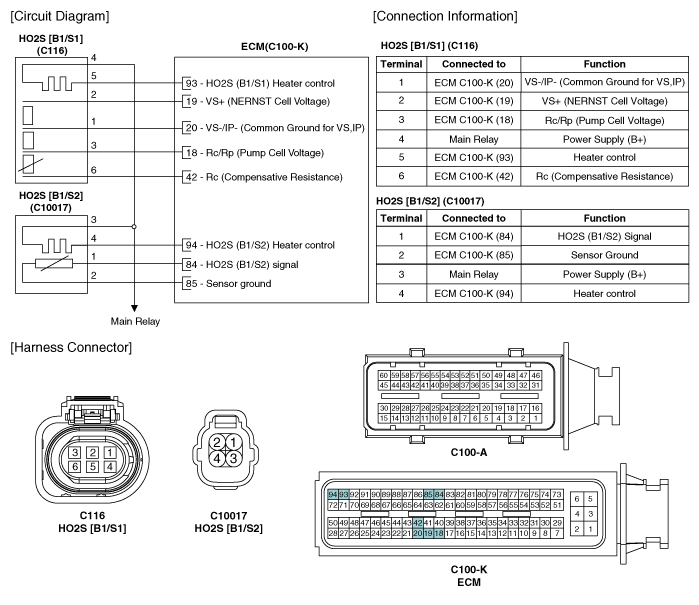

Circuit Diagram

Heated Oxygen Sensor (HO2S) Specifications

Specification HO2S [Bank 1/Sensor 1] (Linear type) ItemSpecificationHeater Resistance (?)2.5 ~ 4.0 [20°C(68°F)] HO2S [Bank 1/Sensor 2] (Binary type) A/F Ratio (?)Output Voltage(V)RICHApprox. 0.92LEANApprox. ...

Heated Oxygen Sensor (HO2S) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S terminals 4 and 5 [B1/S1]. Measure resistance between the HO2S terminals 3 and 4 [B1/S2]. ...
