Kia Optima Hybrid: Hands Free System / Hands Free Switch Schematic Diagrams

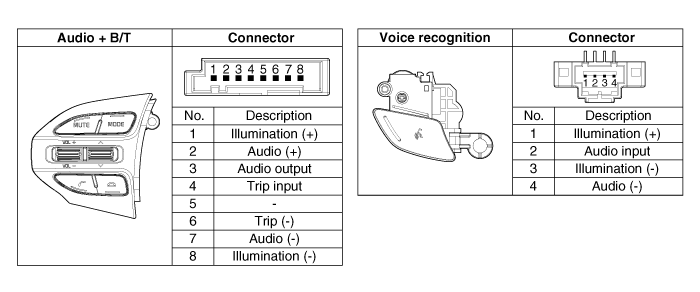

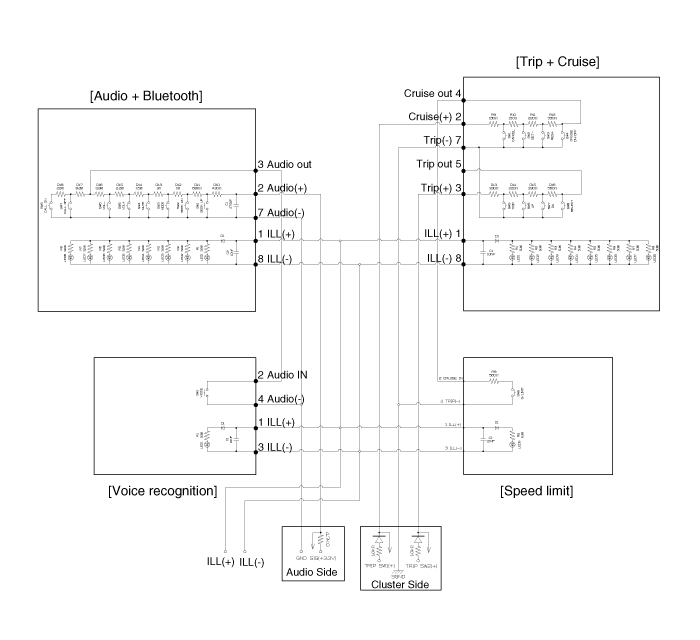

Circuit Diagram

Description and Operation

Function Audio Bluetooth System General Feature • This audio system supports Bluetooth®hands-free and stereo-headset features. - HANDS-FREE feature: Making orreceiving calls wirelessly throughvoice ...

Hands Free Switch Repair procedures

Inspection 1. Check the hands free remote control switch for resistance between terminals in each switch position. [Audio/ Bluetooth] [Voice recognition] [Bluetooth] SwitchConnectorterminalResistance(±5%)Send2-718.91k?End ...
