Kia Optima Hybrid: Windshield Wiper/Washer / Front Wiper Motor Components and Components Location

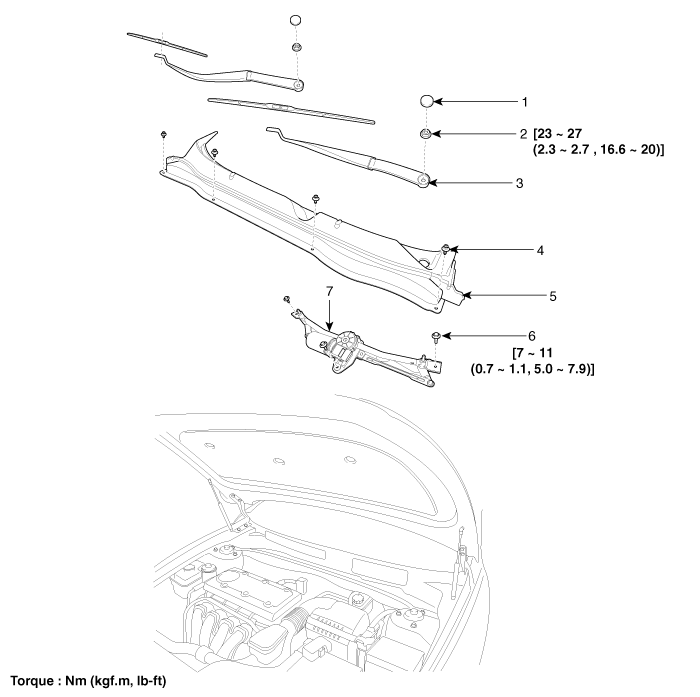

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly

Windshield Wiper-Washer Switch Repair procedures

Inspection Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch.Wiper Switch Washer Switch Removal 1. Remove ...

Front Wiper Motor Repair procedures

Removal 1. Loosen the windshield wiper arm nut (B) after removing a wiper cap (A). 2. Remove the windshield wiper arm and blade (A). 3. If necessary, release the wiper blade fixing clip by pulling up and ...
