Kia Optima Hybrid: Hydraulic System / Electric Oil Pump (EOP) Schematic Diagrams

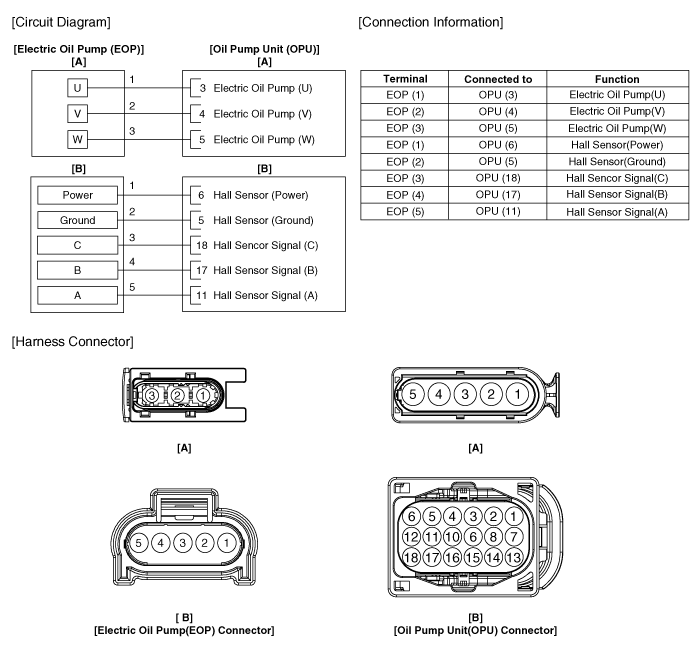

Circuit Diagram

Electric Oil Pump (EOP) Specifications

Specifications PumpPumping capacityAbout 6.46cc per one revolutionTypeInternal gearMotorType Brushless DC motor (3 phases)Torque Rated 1.5 N.mSpeed range100~2,500 rpm ...

Electric Oil Pump (EOP) Components and Components Location

Component Location 1. Electric Oil Pump (EOP)2. Automatic transaxle ...
