Kia Optima Hybrid: Hydraulic System / Electric Oil Pump (EOP) Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Automatic Transaxle System / Hydraulic System / Electric Oil Pump (EOP) Components and Components Location

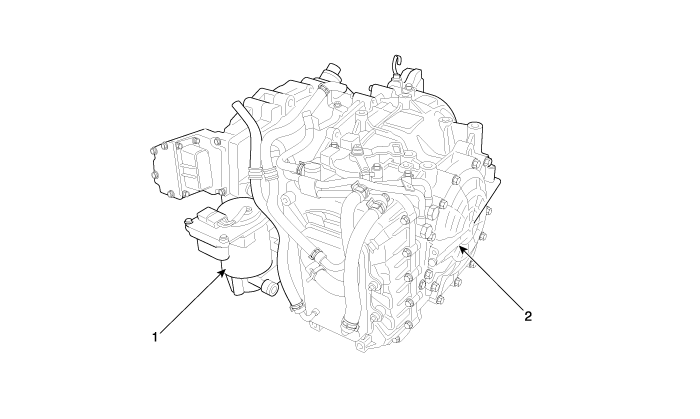

Component Location

1. Electric Oil Pump (EOP)
2. Automatic transaxle

Electric Oil Pump (EOP) Schematic Diagrams

Circuit Diagram ...

Electric Oil Pump (EOP) Repair procedures

Removal 1. Disconnect the 12V battery negative (-) cable. 2. Remove the under cover (A). Tightening torque : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft) 3. Remove the electric oil pump (EOP) connector ...
