Components

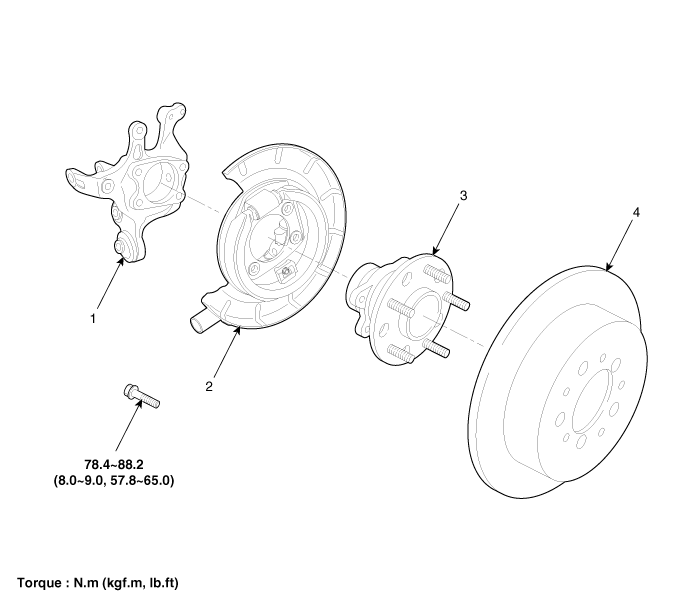

1. Rear carrier assembly
2. Parking brake assembly
3. Rear hub assembly
4. Rear brake disc

Rear Axle Assembly

...

Rear Hub - Carrier Repair procedures

Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove wheel nuts, rear wheel and tire from rear hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ...
