Kia Optima Hybrid: Seat Electrical / Components and Components Location

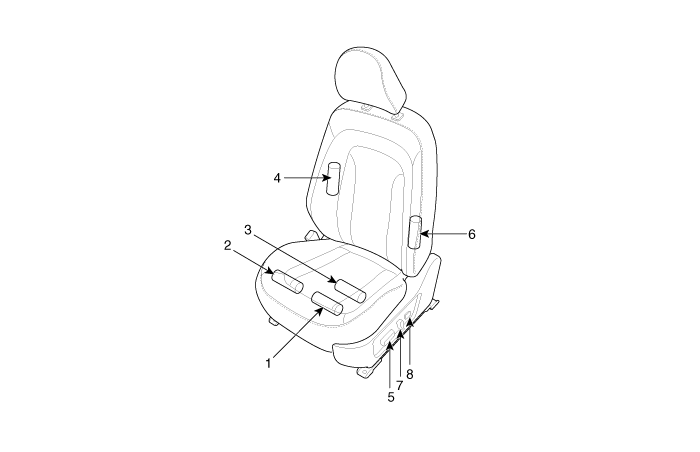

Component Location

1. Slide motor
2. Front height motor
3. Rear height motor
4. Lumber support motor
5. Power seat control switch
6. Recline motor
7. Recline control switch
8. Lumber support switch


Seat Electrical

...

Power Seat Motor Repair procedures

Inspection Power Seat Motor 1. Disconnect the connectors for each motor. A : Front height motor B : Slide motor C : Rear height motor D : Recline motor E : Lumber support motor 2. With the battery connected ...
