Kia Optima Hybrid: AHB(Active Hydraulic Boost) System / Brake Pedal Components and Components Location

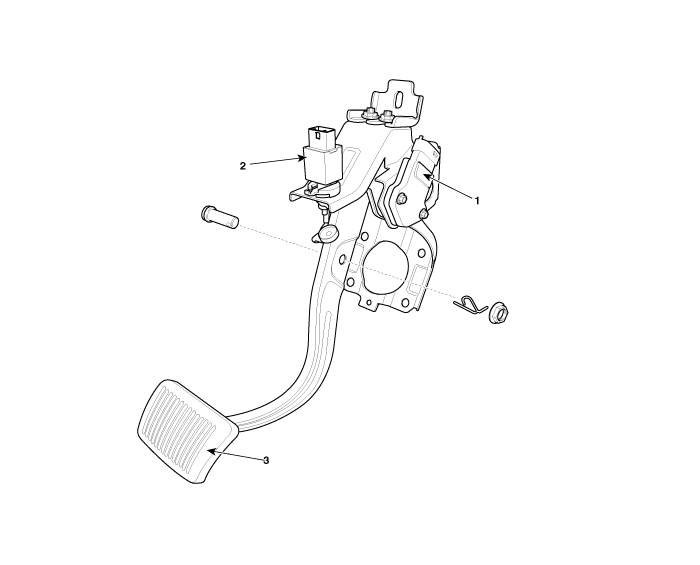

Components

1. Brake pedal stroke sensor
2. Stop lamp switch
3. Brake pedal

Brake Line Repair procedures

Removal 1. Disconnect the brake fiuid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the master cylinder reservior with a syringe.     Do not spill brake ...

Brake Pedal Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel and reinforcing panel. (Refer to the Body group - crash pad) 3. Remove the shower ...
