Kia Optima Hybrid: Blind Spot Detection System / Blind Spot Detection Variant Coding Description and Operation

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Blind Spot Detection System / Blind Spot Detection Variant Coding Description and Operation

Description
The used radar frequency of BSD is two, "North America region" and "Except North America region".
If it replaces BSD unit, BSD unit has to perform the procedure of variant coding.
BSD Variant Coding
1.

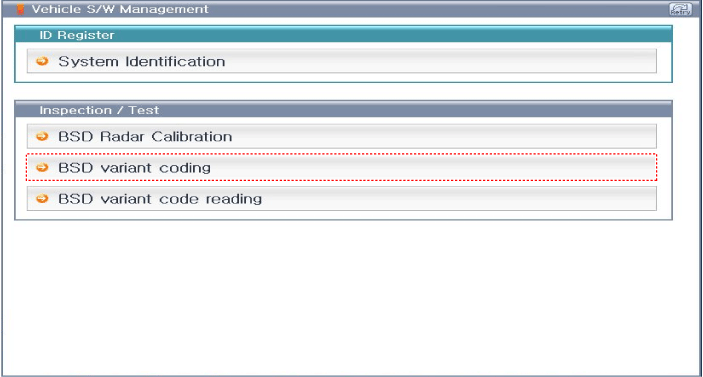

Select the "BSD Variant Coding" procedure in BSD system.

2.

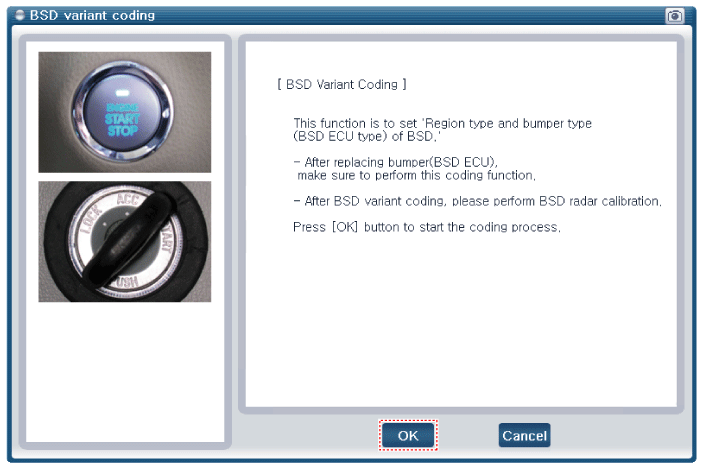

Perform the "BSD Variant Coding" procedure according to the GDS screen message.

3.

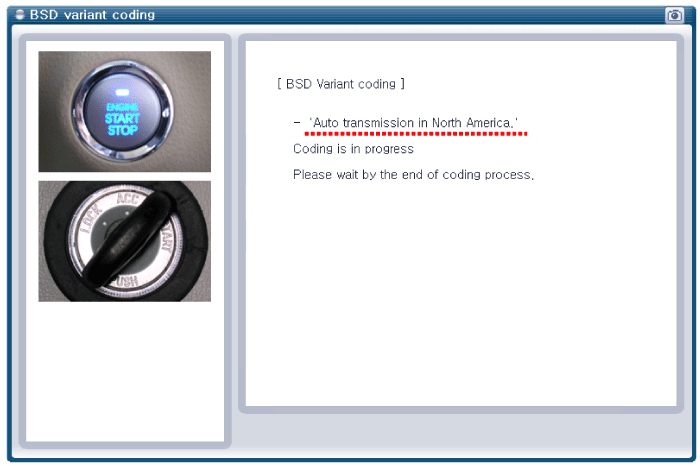

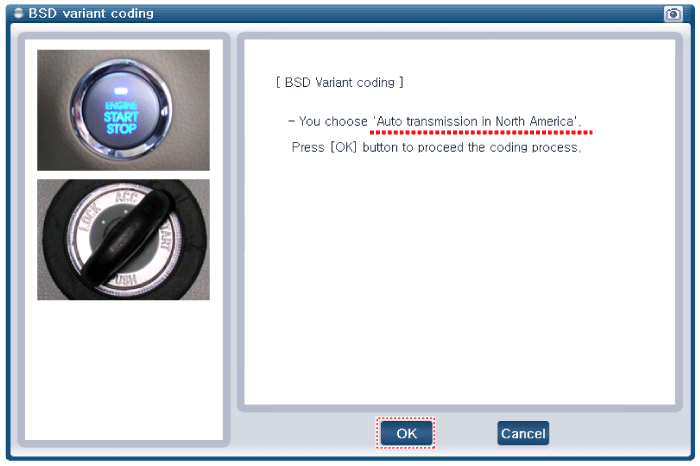

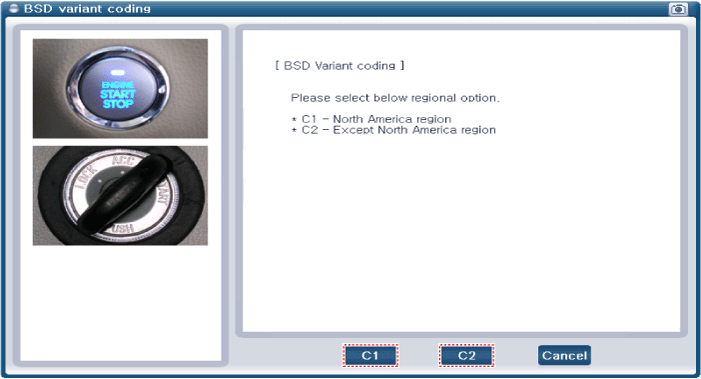

Select "C1" or "C2" for each region and transmission.
And then proceed the BSD variant coding process.

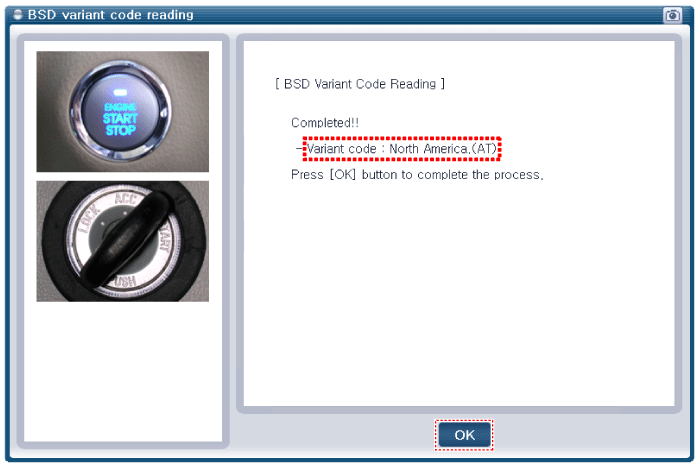

BSD Variant Code Reading
1.

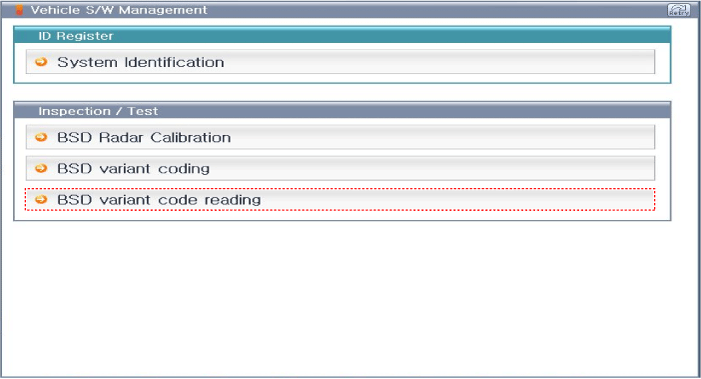

Select the "BSD Variant Code Reading" procedure.

2.

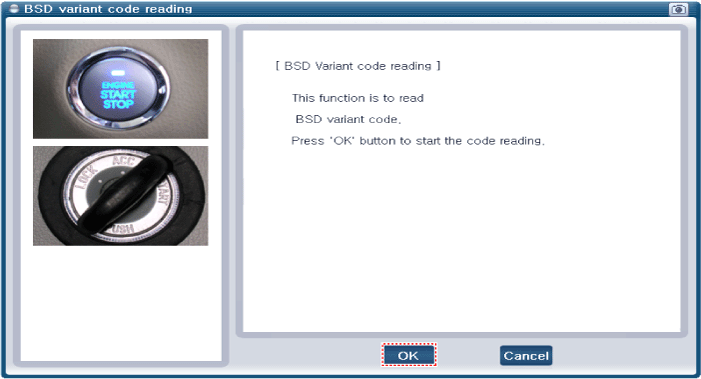

Proceed the "BSD Variant Code Reading" procedure according to the GDS screen message.

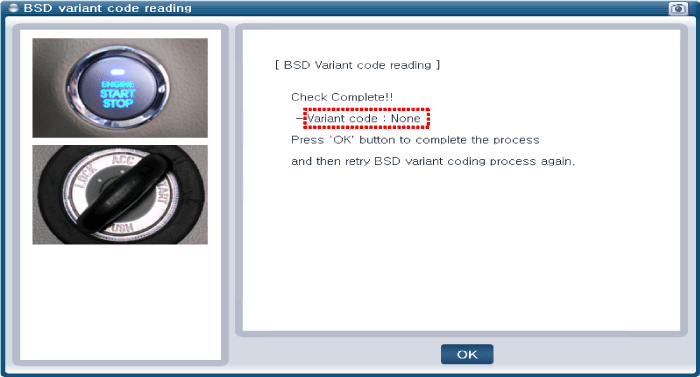

If BSD unit does not set "BSD Variant Coding", "Variant code : None" is verified.
Perform the "BSD Variant Coding" certainly.

Blind Spot Detection Unit Repair procedures

Removal Blind spot detection (BSD) unit 1. Disconnect the negative (-) battery.     Be careful when removing the blind spot detection unit. The bracket may break off from the bumper. 2. Remove ...

Blind Spot Detection Radar Calibration Description and Operation

Description To sense the cars exactly in the next lane with the radar, the direction of the sensor and the direction of the vehicle have to align. This is BSD unit alignment. If this alignment is not performed ...
