Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Blind Spot Detection System / Blind Spot Detection Indicator Components and Components Location

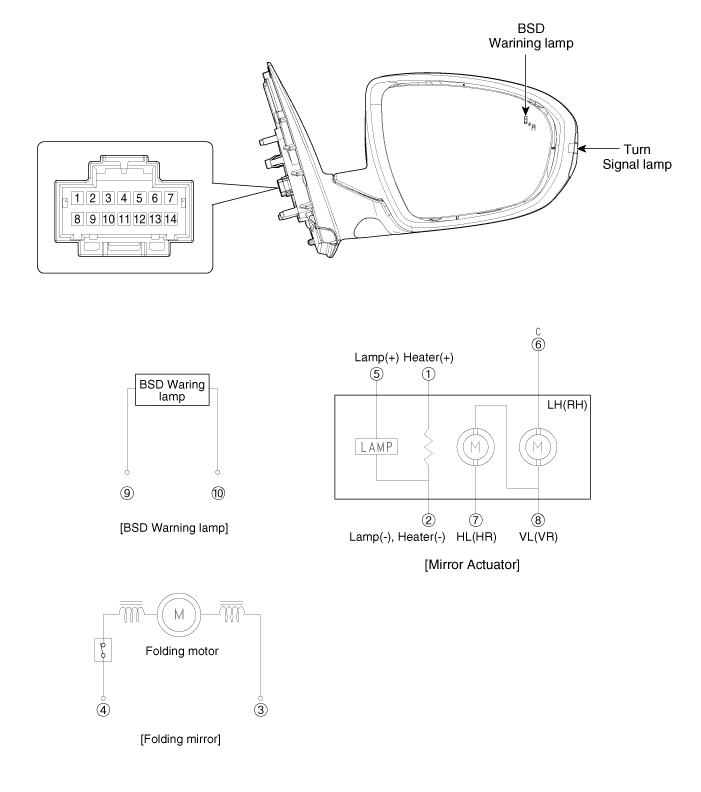

Components

Blind Spot Detection Switch Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to the BD group - "Crash pad") 3. Remove the crash pad side switch assembly (A) as shown below picture. ...

Blind Spot Detection Indicator Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the mirror (C) from the mirror holder after disconnecting the heater connector (A) and BSD warning connector (B). 3. Remove the BSD warning ...
