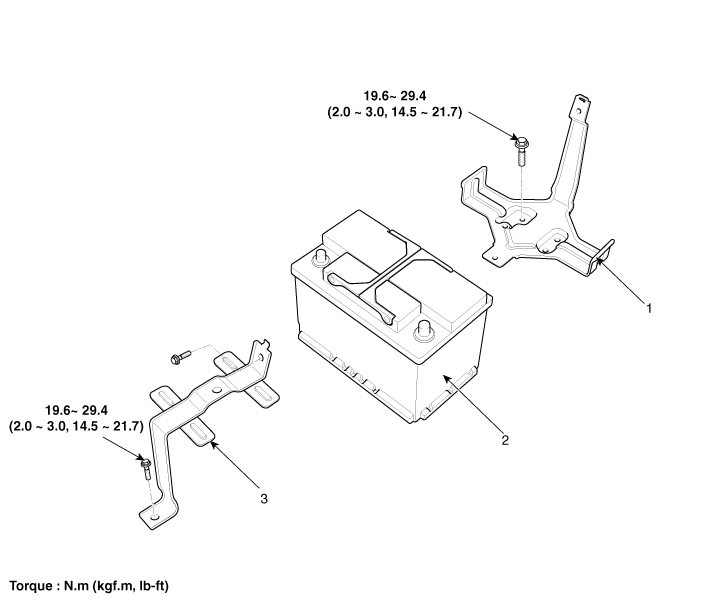

Components

1. Battery tray
2. Auxiliary 12V Battery
3. Battery upper bracket

Repair procedures

On-vehicle Inspection     • Check that the auxiliary 12V battery cables are connected to the correct terminals. • Disconnect the auxiliary 12V battery cables when the battery is given a quick ...

Auxiliary 12V Battery Description and Operation

Description 1. The maintenance-free battery is, as the name implies, totally maintenance free and has no removable battery cell caps. 2. Water never needs to be added to the maintenance-free battery. 3. ...
