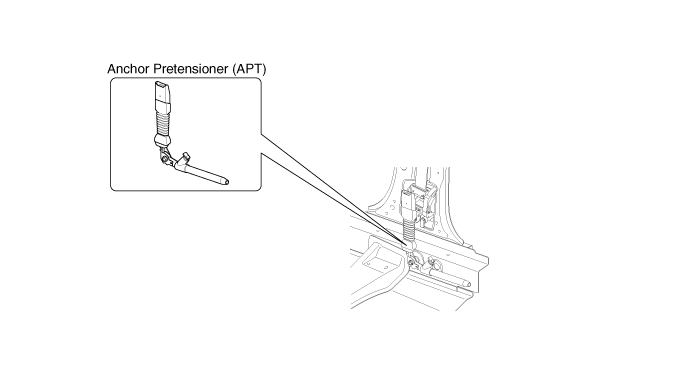

Anchor Pretensioner (APT) Description and Operation
Description Front seat belt anchor pretensioner operates as well as belt pretensioner at the same time If it gets into its deploy condition after a collision. It is located at near anchor on front seat ...
Anchor Pretensioner (APT) Repair procedures
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. To remove the seat belt anchor pretensioner (C), keep on pushing the lock pin (A) as arrow ...
