Kia Optima Hybrid: Seat Electrical / Air Ventilation Seat Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Seat Electrical / Air Ventilation Seat Components and Components Location

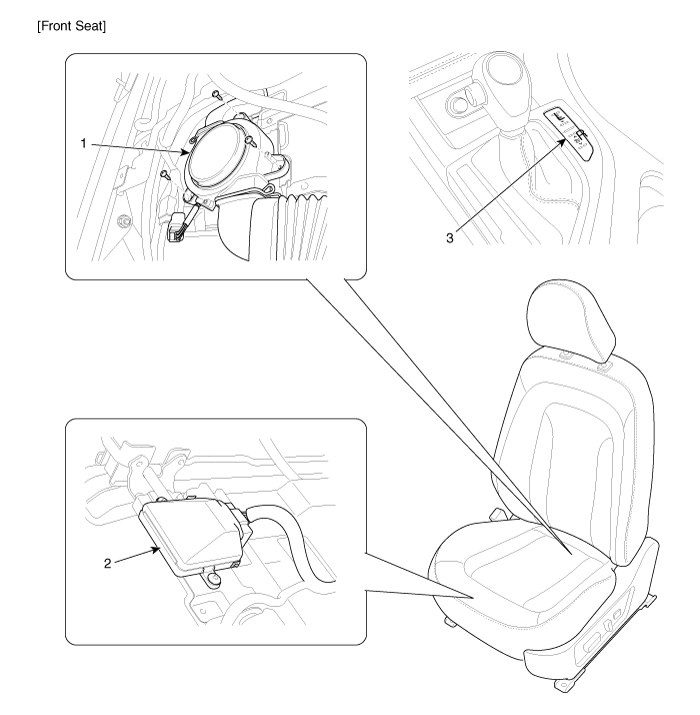

Components (1)

1. Ventilation blower
2. Ventilation ECU
3. Ventilation seat switch

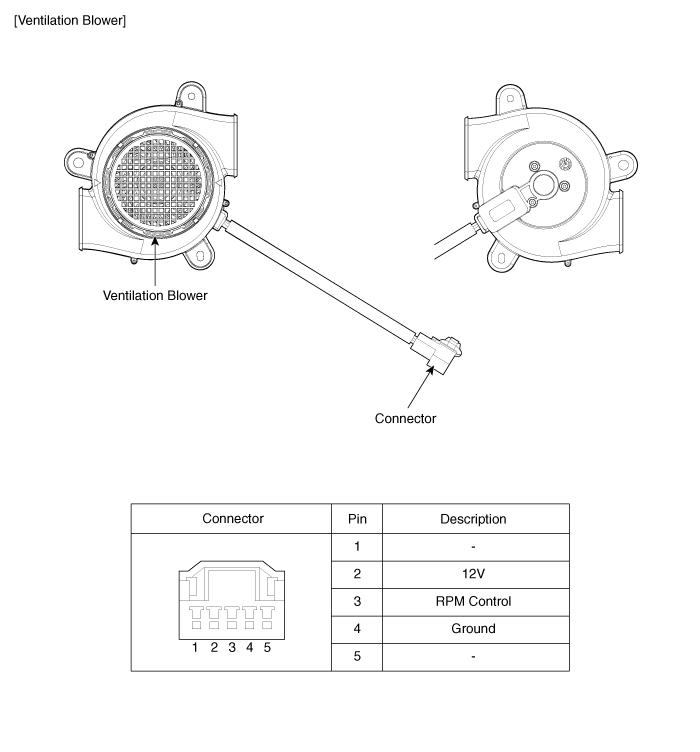

Components (2)

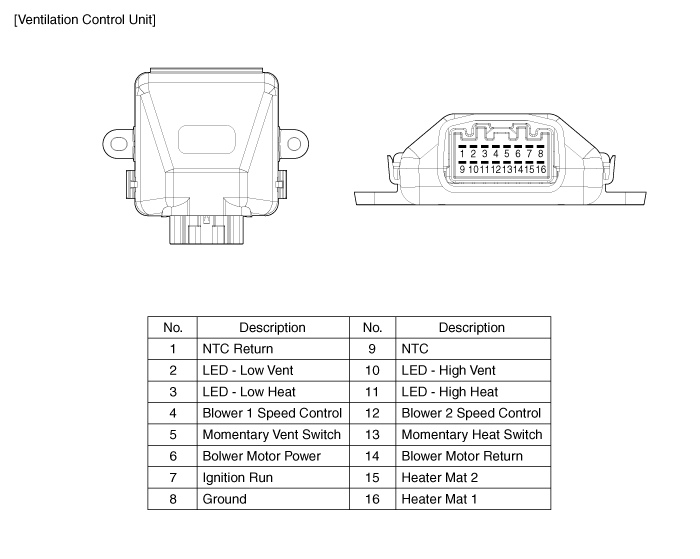

Components (3)

Seat Heater (Non-Air Ventilation) Repair procedures

Inspection First Seat Heater 1. Check for continuity and measure the resistance between No.4 and No.6 terminals. [Cushion] No.DescriptionNo.Description1Heater (-)3NTC (+)2NTC (-)4Heater (+) [Back] 2. Measure ...

Air Ventilation Seat Schematic Diagrams

Circuit Diagram ...
