Kia Optima Hybrid: Air Conditioning System / A/C Pressure Transducer Components and Components Location

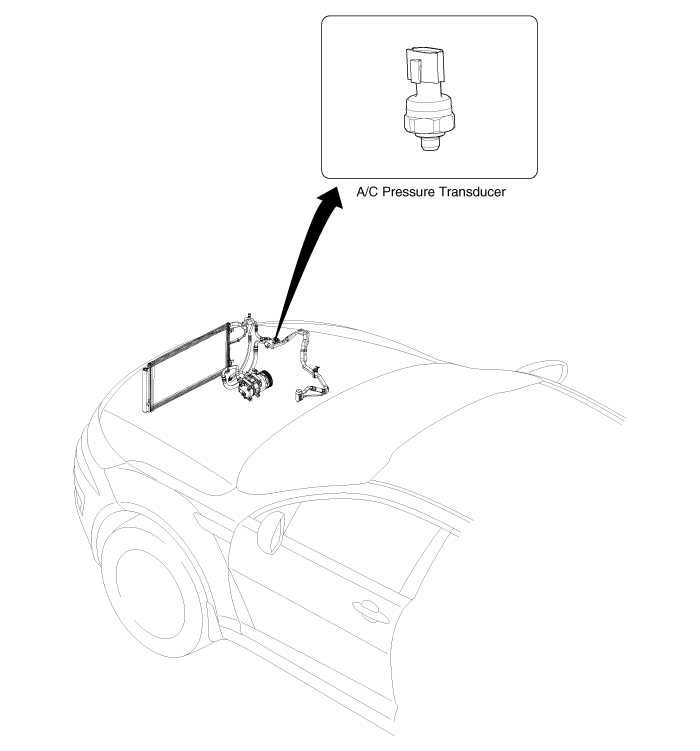

Component Location

Evaporator Temperature Sensor Repair procedures

Inspection 1. Ignition "OFF" 2. Disconnect evaporator temperature sensor. 3. Using the multi-tester, Measure resistance between terminal "1" and "2" of evaporator temperature sensor. Specification Evaporator ...

A/C Pressure Transducer Description and Operation

Description A/C pressure transducer convert the pressure value of high pressure line into voltage value after measure it. By converted voltage value, engine ECU controls cooling fan by operating it high ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Relay Box (Engine Compartment) Repair procedures


Inspection Power Relay Test (Type A)     – Do not use pliers. – Pliers will damage the relays, which could cause the engine to stall or not start. – Carefully remove the relay using the relay puller. Check for continuity between the terminals. A : Rear defogger relay B : EWP relay C : ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Anchor Pretensioner (APT) Repair procedures


Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. To remove the seat belt anchor pretensioner (C), keep on pushing the lock pin (A) as arrow direction. And then remove the seat belt after pushing the lock pin (B). 3. Remove the door scuff ...
