Kia Optima Hybrid: Interior / Windshield Glass Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body (Interior and Exterior) / Interior / Windshield Glass Components and Components Location

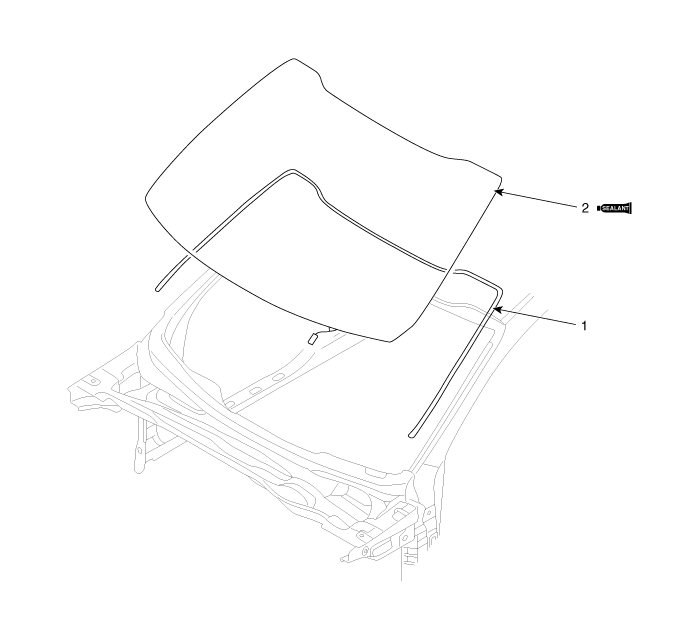

Components

1. Windshield side moulding
2. Windshield glass

Trunk Trim Repair procedures

Replacement     • Put on gloves to protect your hands. • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface. • Take care not to bend or ...

Windshield Glass Repair procedures

Replacement Removal     • Put on gloves to protect your hands. • Use seat covers to avoid damaging any surfaces. 1. Remove the following items. • Front pillar trim (Refer to the BD group ...
